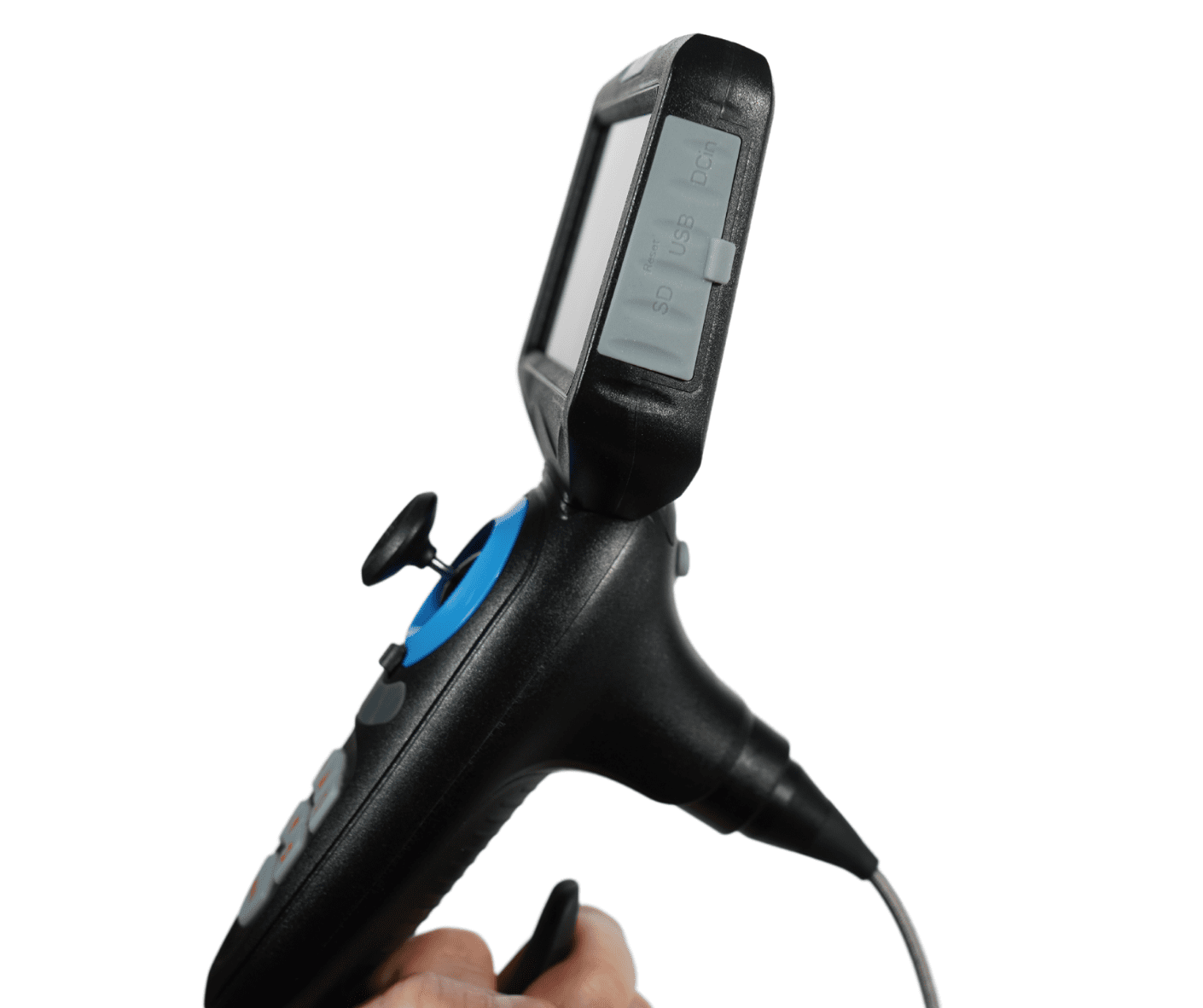

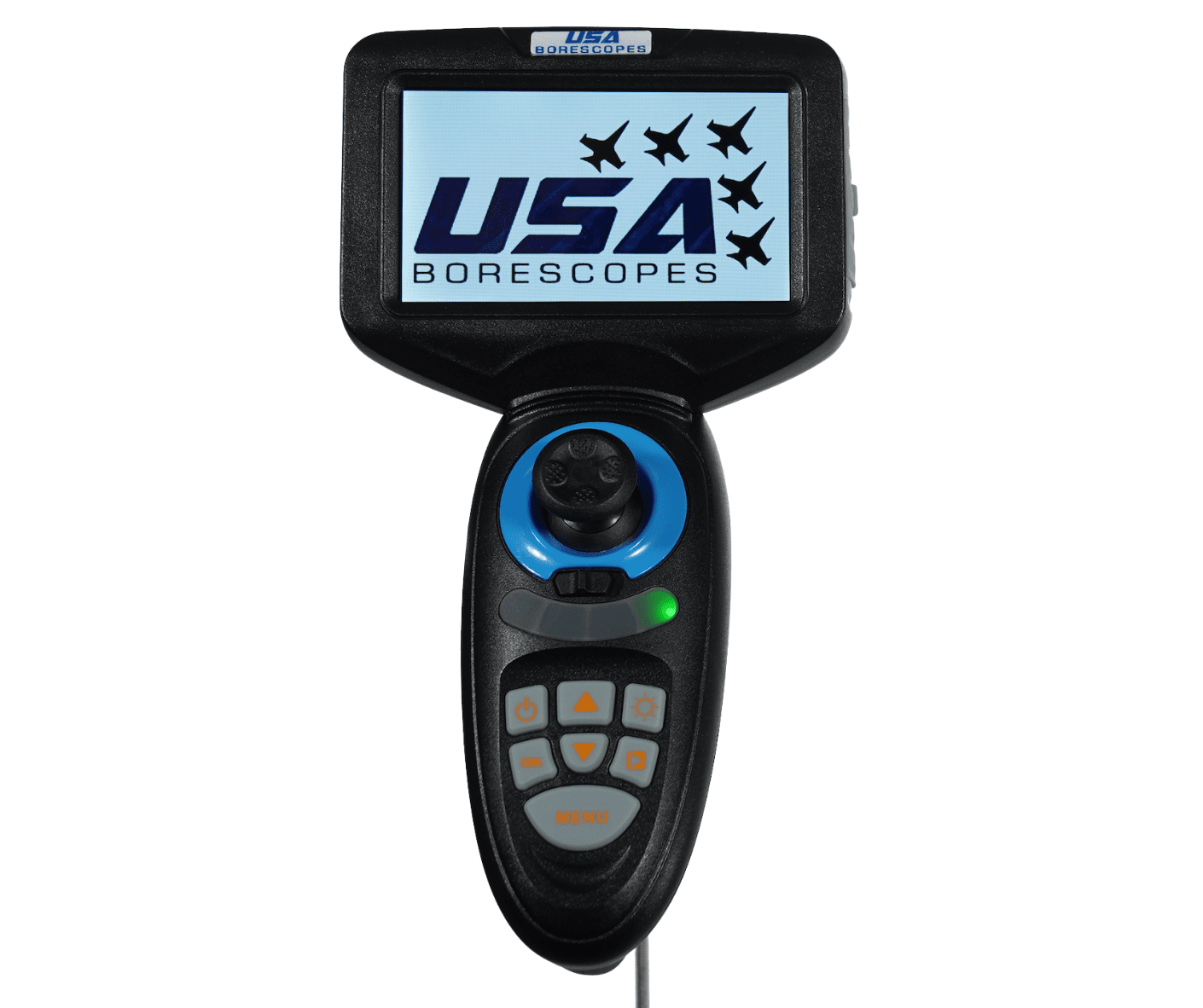

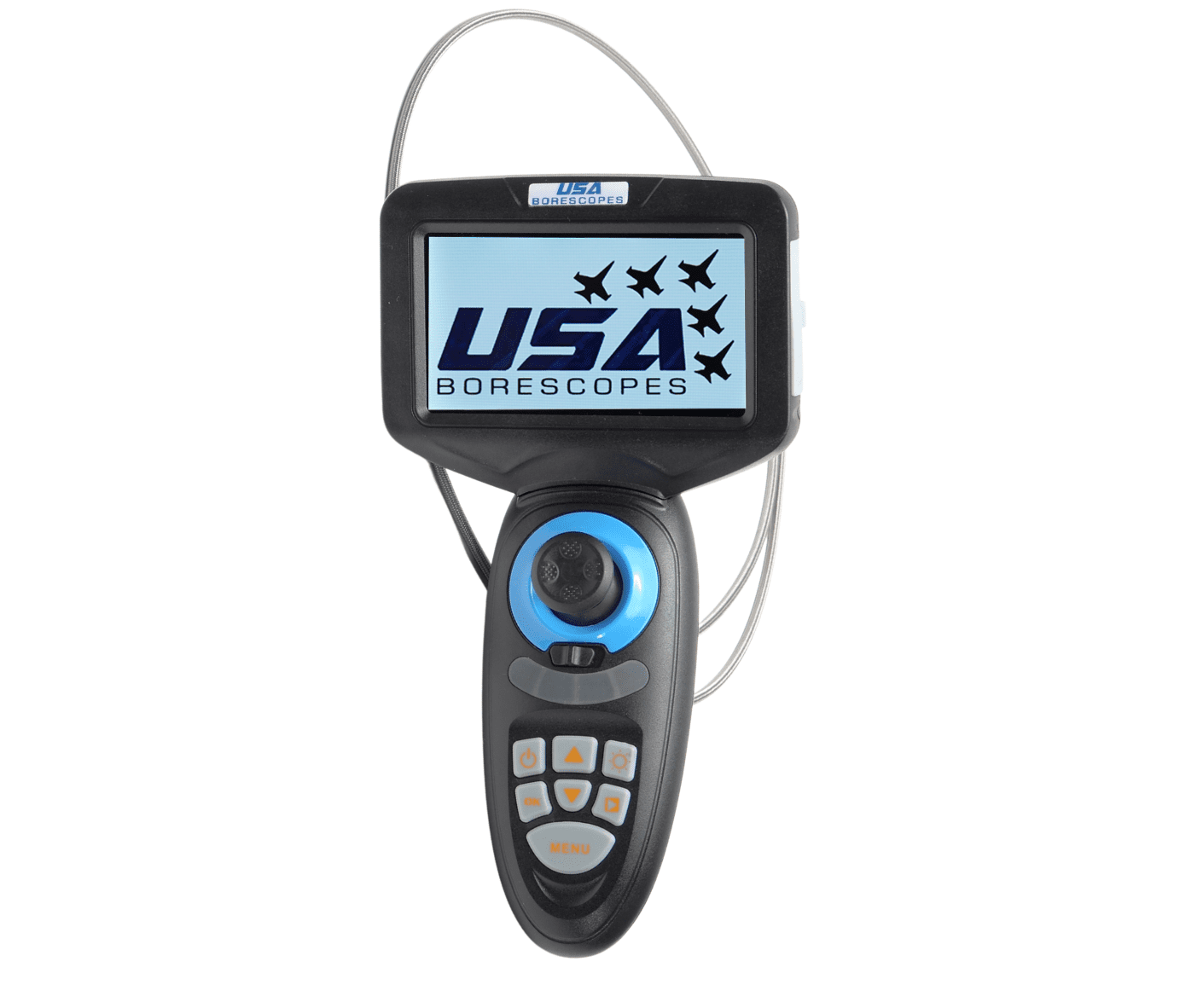

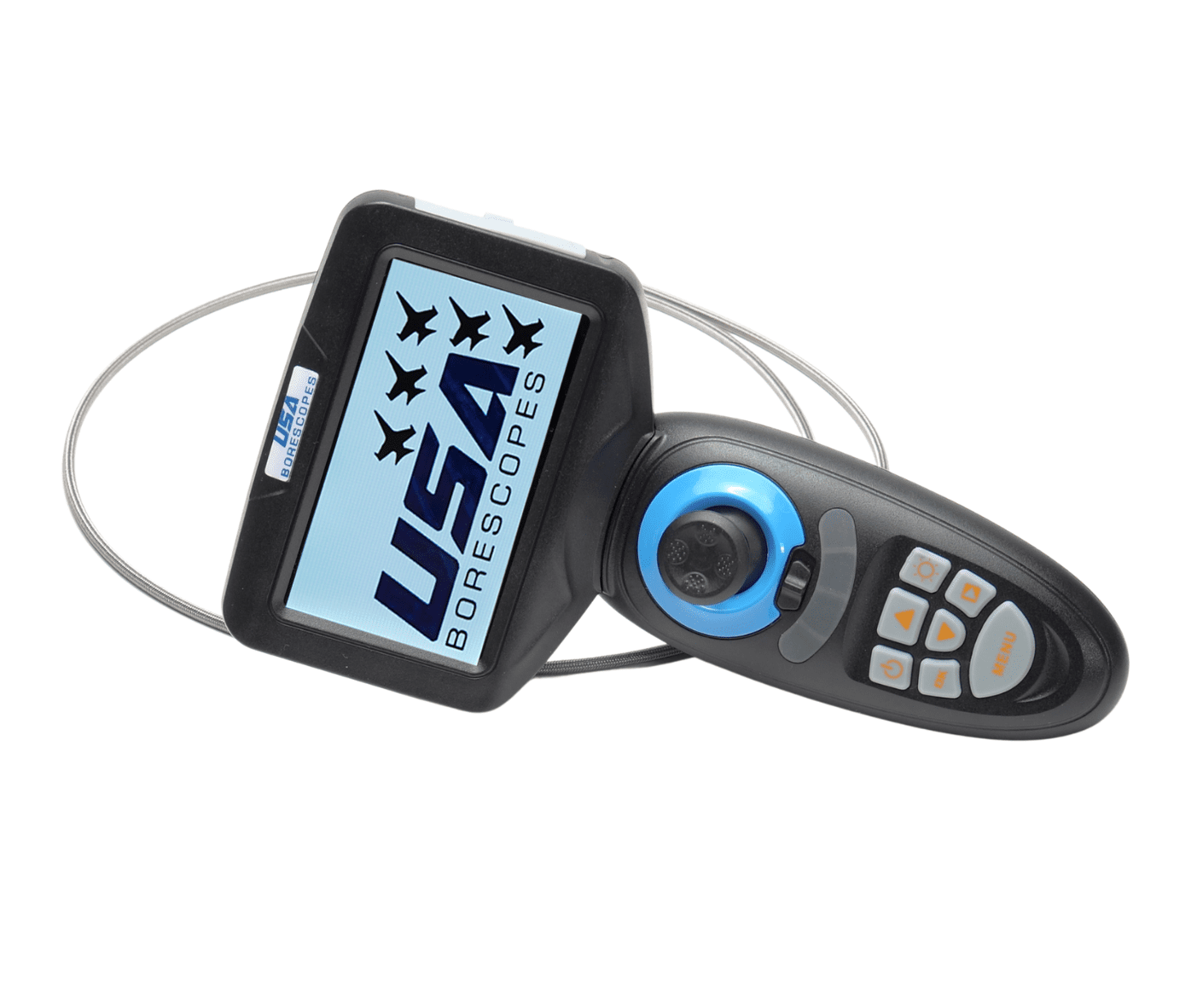

USAVSJ-4-1500 – Joystick Articulation – 4mm Videoscope – 1.5m Length

Specifications:

• FOV 120°
• DOV 10-80mm
• Bending section length :50 mm (1.96 inch)
• Distal tip length: 15mm (.59 inch)
• Battery: Li-ion 3500mAH
• AC Adapter Input: 110-240VAC
• Insertion Probe:  IP 67
• Control Station; IP 52; 4.5”
• Time Date Stamp
• HMDI out, USB 2.0 port
• Automatic white balance
• 7 Languages
• Operating temperature 0°C -60°C

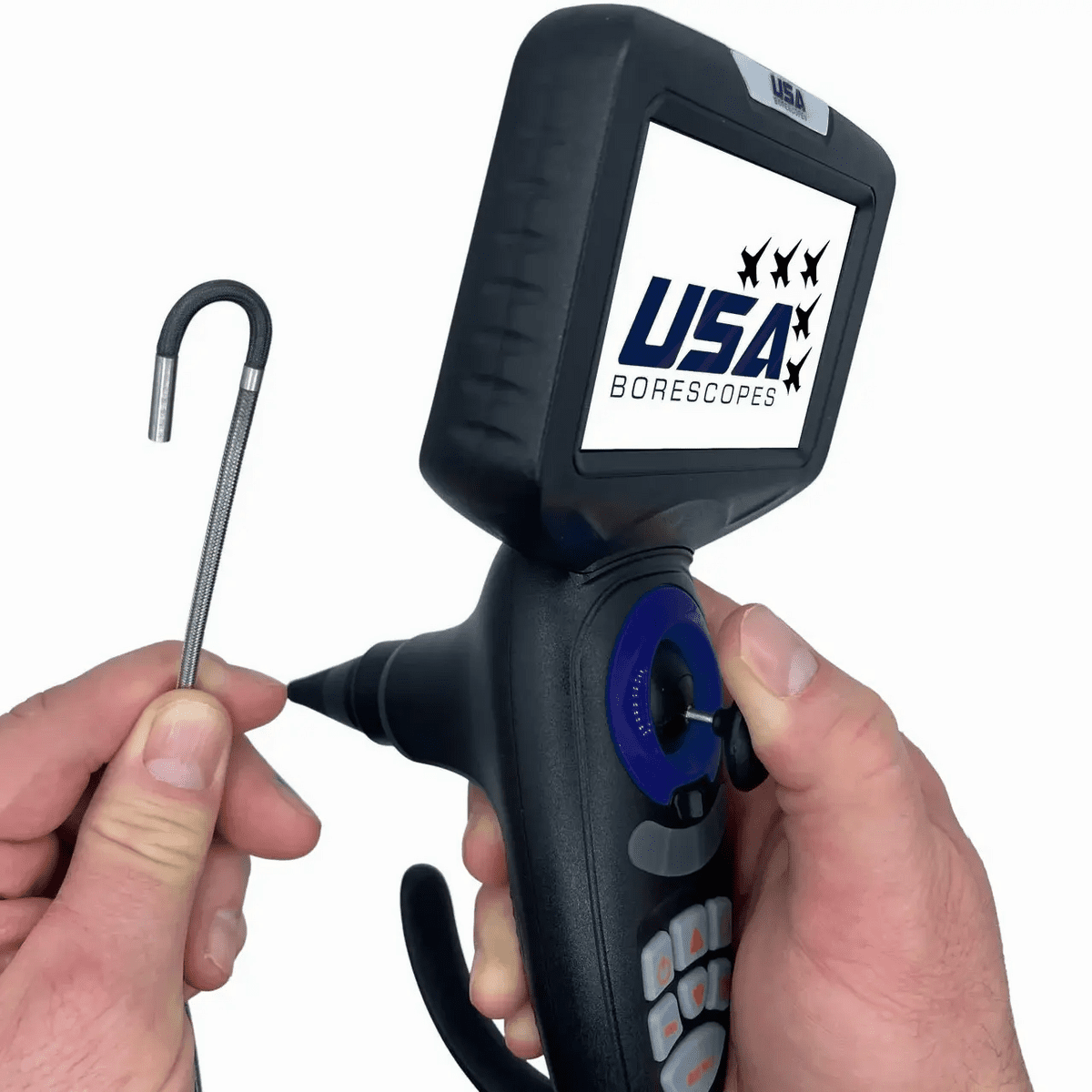

USAVS J-4-1500 Slim 3.9mm diameter joystick controlled articulating videoscope with responsive cable guided controls. The precision-made bending section of the economy joystick allows for smooth and precision manipulation of the tip of the probe to obtain a full view of the borescope inspection area. The borescope probe is steel braided and flexible. Still photos and videos are captured with just the push of a button. The data is saved on a removable SD card which allows for easy storage and transfer of the borescope inspection data.

The Economy Joystick Videoscope provides:

• High Image Quality and Clarity (1280 x 720px)
• Water and Oil resistant probe
• 3.9mm diameter probe
• 360 degrees (all way) articulation
• 1.5 meter (4.9 feet) borescope probe
• Rechargeable battery pack
• Adjustable LED lighting

The monitor is made up of high brightness color LCD display and ultra-small High Resolution CMOS micro camera. Inspection results will be clearly shown on the 4.5-inch LCD. It has crisp imaging, high reliability and stability which proves valuable in many different industries:

• Aviation Borescope Inspection
• Casting Borescope Inspection
• Helicopter Borescope Inspection
• FOD Borescope Inspection
• Engine Borescope Inspection
