PIVS3188DN-T – 1″ Pipe Camera With 512Hz Transmitter – 100′ Length
Out of stock
Superseded by the USAP-21-130
The PIVS3188DN will continue being serviced by USA Borescopes.
Availability Notice dated October 2023
Manual Push Inspection Videoscope (PIVS3188DT)

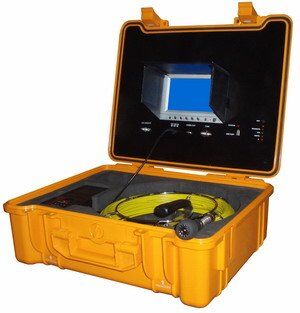

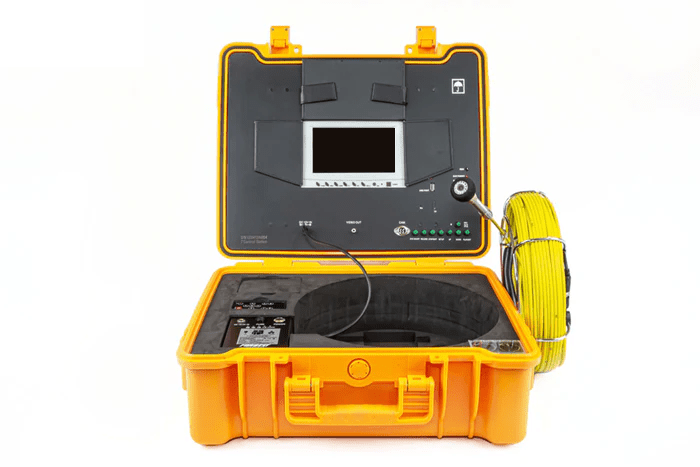

Portable push camera system with a 1 Inch diameter tip and a long 100 foot insertion probe. The video camera head is flexible and is supplied with bright LED lighting. Ideal for pipelines, ducts, drains or sewer inspections.
7″ TFT lcd color monitor in an ABS Waterproof Case
6 ” CCD waterproof color camera with 8 LED lights
Camera has diameter of 1 inch
Sapphire glass lens cover
Camera field of view: 60°
Cable Length : Standard : 30 meters (40M optional – $1,699 call for availability)
Remote control (for monitor)
Rechargeable Li-ion storage battery
Built-in digital recorder
Movie format: AVI
View of Depth: 400mm (approx)
1 Bar Rating (14.5038 psi)
PIVS Manual plus Spec Sheet
This low cost portable inspection device is designed to deliver quality video inspection in a wide range of applications including: sewers, sewer pipes, air ducts/piping, wells, production piping and power plants.
The push camera head contains 12 adjustable LED lights, a flexible spring coiled joint to navigate around corners, and a Sapphire lens to resist scratching. This high resolution pipe inspection camera is designed to capture bright, crisp, color video of the inspection area. An optional 512Hz frequency sonde, located immediately behind the camera head, with the ability to remotely locate it (with the use of the optional locator). The monitor and additional controls are built into a compact, waterproof and lightweight hard plastic case making it easy to transport. The 7” TFT LCD color display presents a live color image with your thumb drive. An adjustable sun hood is included as a sun shield for outdoor inspections.
The PVC coated fiberglass cable is waterproof and available in 30 meter (98.4 foot) and 40 meter (131.2′) lengths. The reel conveniently stores the cable inside the case and is easy to remove and return to the storage area. This system. In addition, the control station for this sewer camera can support different diameter probes: 6mm, 12mm and 40mm. This unit is also available as a pipe inspection camera rental.
Out of stock
