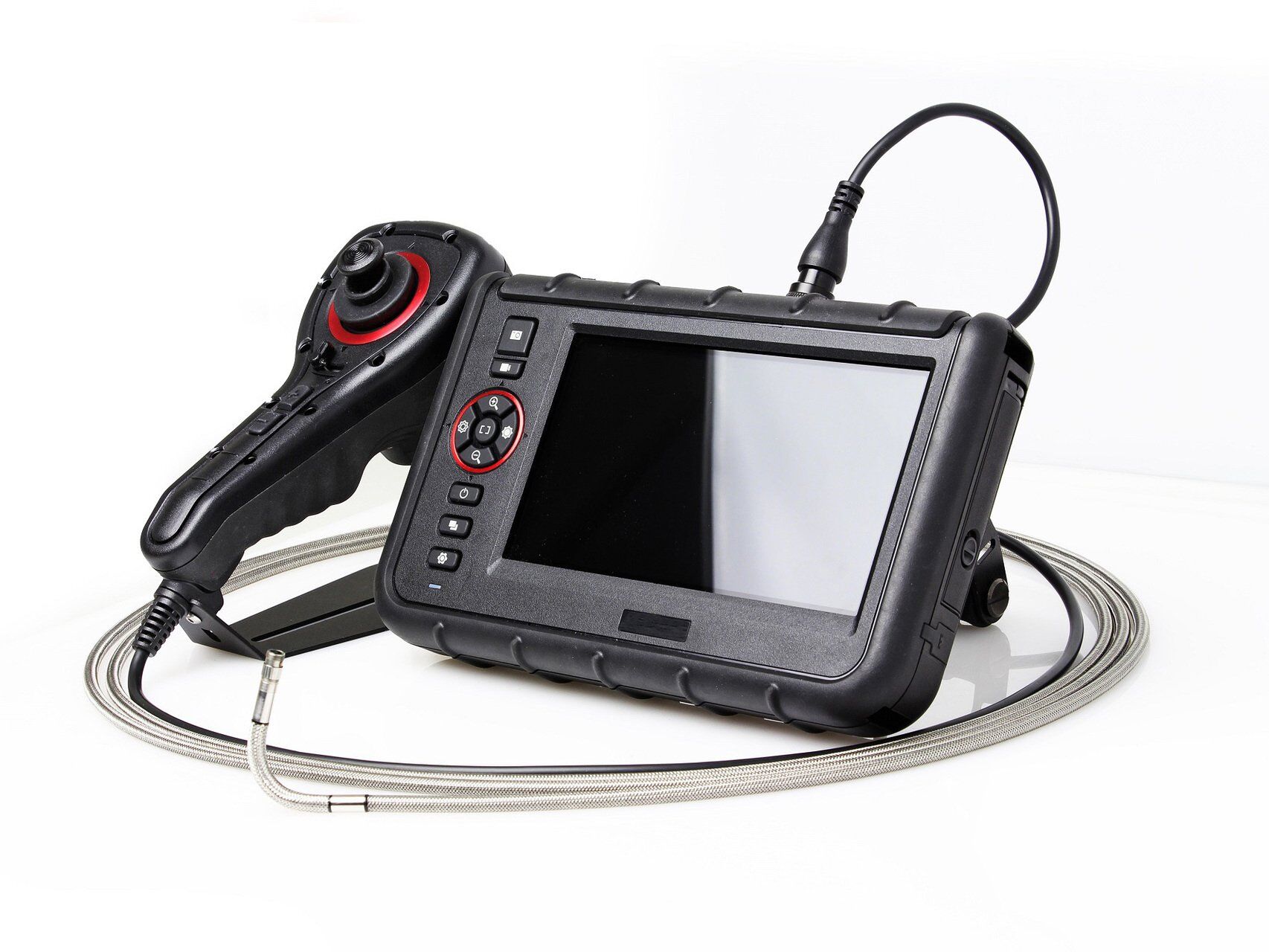

USA1000J-6-3000 – Joystick Articulation – 6mm Videoscope – 3m Length

PN: USA1000J-6-3000

6mm x 3 meter all way articulating portable videoscope with built in picture taking, video recording, rechargeable battery pack, straight view and side view tip

Features

• 7″ TFT LCD

7″ videoscope, protected by oil and scratch resistant tempered glass

• Superior image quality

Sharp, Clear and Bright

• Rugged and robust

1m drop resistance, IP57 protection(main system)

• Long duty hour

Rechargeable Li-battery lasts for 6 hours

• LED backlight function keys

Great for dark environment without sunlight or other light sources

• Interchangeable Side View Tip

• USB camera

Support webcam device to remote access for data sharing and real-time diagnose

• USB reader

Simply connect to your PC to retrieve your data from the SD card, card reader is not necessary

• 3 easy ways to capture pictures

-button on the system

-articulation probe

-remote control

• Neck/hand strap

convenient and great for operation

• Light weight

only 1.3kg

• Water and Oil Resistant Probe

• 3.17x Digital Zoom

System Specifications:

System dimension          240x154x47 mm

System weight                  1.3kg (2.86lb)

Display                               7″ TFT LCD (WVGA)

Power                                 Rechargeable Li battery 3.7V

Power supply                    AC 100-240V 50-60Hz

Power consumption         DC 5V 3A

Battery Life                        5 hours (3 hours charge to full)

Drop & Water proof         IP57 resistant

Drop test                            1m

Video out                           NTSC & PAL / AV OUT

Storage                               SD card(SDHC), up to 32G

Video / Photo file format    .avi / .jpg

Video / Photo resolution    640 x 480

Working temperature         0℃ ~ 60℃

Storage temperature           0℃ ~ 60℃

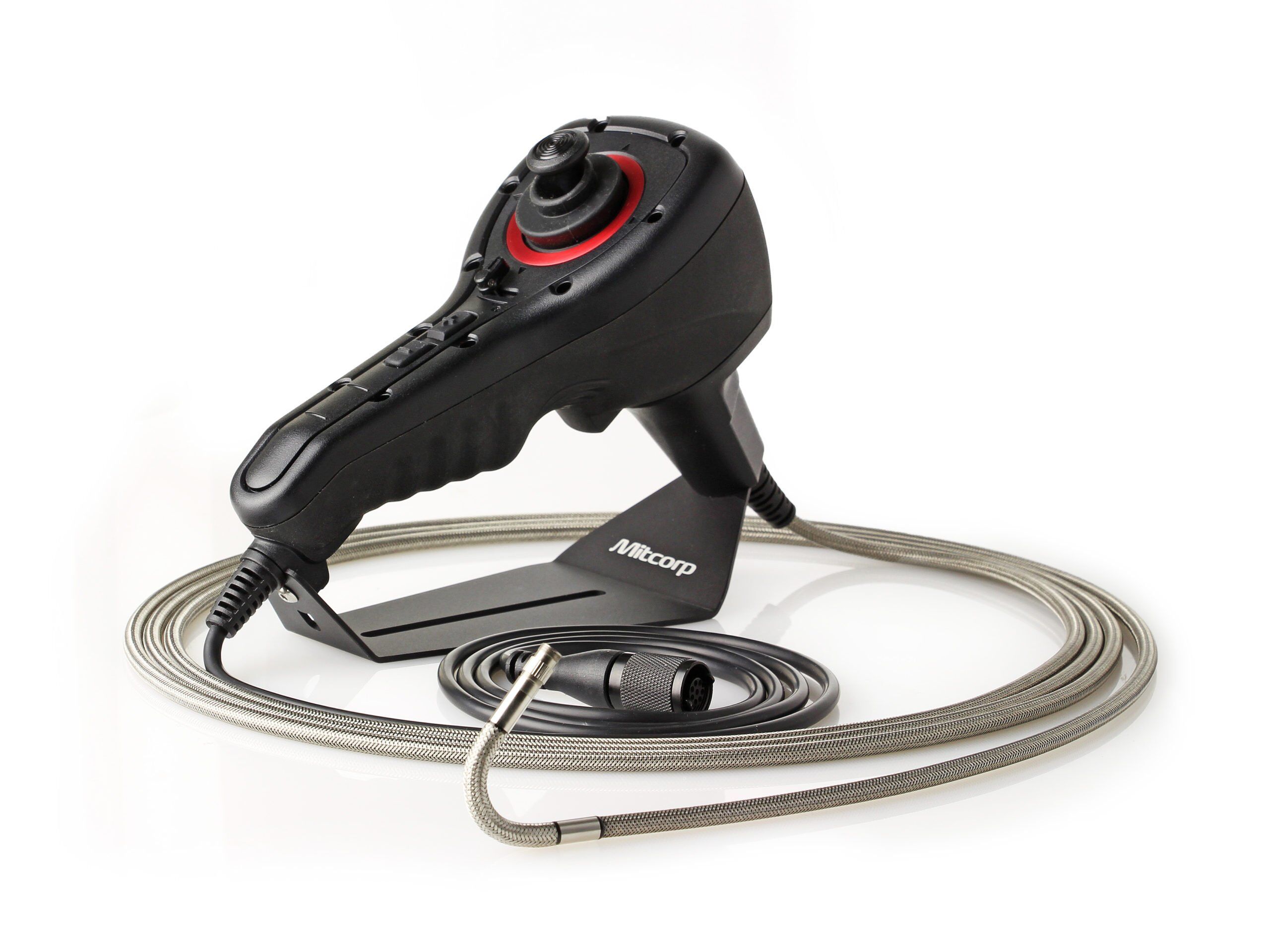

Two way articulation tube:

Probe head diameter        6.0mm

Tube length                        3m

Articulation                        All way

FOV                                      90 degree

Depth of Field                    12 to 150mm

LED                                      front/side

Buttons                               snapshot / LED+/ LED-

Button lock                        lock up buttons functions

Insertion tube                   E e air  -20ºC to 80 ºC

Water                                 10 ºC to 30 ºC
