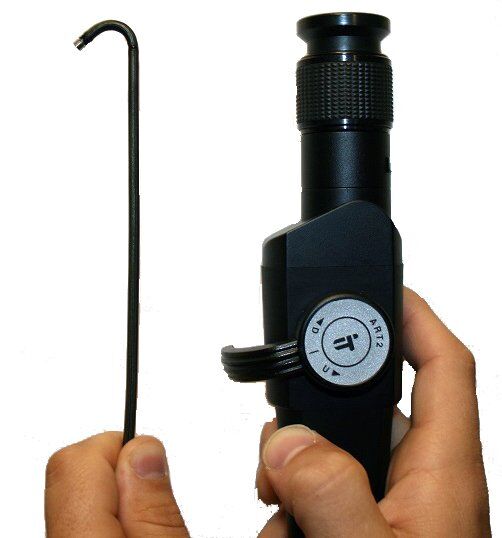

RU2-3.5-1000 Fiberscope

RU2-3.5-1000

Product Description:

Flexible fiberscopes are great for one-handed operations so that your other hand can do the work. They come in sizes ranging from 0.5mm to 10mm and feature 2-way articulation. They are usually rugged with a stainless steel or tungsten insertion probe and water and oil resistant. They work great for automotive, aircraft, marine, locksmith, plumbing, and machine or casting inspections.

Diameter: 3.5mm (0.138 in)

Working Length: 70, 100, 130 or 150 cm

Articulation: 2-way 120°

Direction of View: 0° Forward

Field of View: 40°

Depth of Field: 5mm (.197 in) – 100mm (3.94 in)

Side View Tip: No

Optical System: Leached Image Guide

Resolution: 8,000 Pixels

Pixel Size: 6.2µm (Micrometer)

Eyepiece Magnification: 35X

Insertion Tube Sheathing: Tungsten Braid

Insertion Tube Bend Radius: 15mm (1.59 in)

Integral Light Guide Cable: 1.5m (4.9 ft)

These scopes are also available with a light guide post on the scope handpiece instead of an integral light guide cable.

Light Guide Cable Plug: IT Concepts

Other light guide plug adapters are available including Olympus and Machida configurations.

Hand piece: Aluminum with matt powder finish

Operating Temperature:

Working Length -10° to 80° C (14° to 176° F)

Housing and Light Guide Cable -10° to 50° C (14° to 122° F)

Fluid Resistance: Working length will withstand immersion in water, mineral and synthetic lubricating oils and hydraulic fluids, aviation fuel, kerosene, gasoline and diesel fuel.

Pressure Resistance: Working length is resistant to 1 bar (14.5 psi)

Also available in lengths:

RU2-3.5 x 700mm $4,488.00

RU2-2-3.5-1300 $5,512.50



This flexible fiber scopes offer high resolution optics, with stainless steel braided insertion probes, which are tough and flexible.  The 90 degree two-way tip articulation allows inspections in tight areas. The probes are protected by a stainless steel braided sheath which are water, oil, and gasoline resistant.  Ideal for insertion into multiple-bend pipes such as aviation engine guide tubes.  The fiberscope insertion tube flexibility changes continuously.

The universal focusing eyepiece easily connects to c-mount video cameras through a simple coupler, with a variable focus.

The fiberscope light guide is approximately 1 meter long (can be customized for longer length) to allow ample room to work with from the light source.  The standard receiver on the light guide is ACMI and there are various adapters available to support your specific light source.  The fiberscope light guide can be used with halogen, metal halide or LED light sources.   Please contact us if you have a specific UV application.

The fiberscope is packaged in a custom fitted standard duty storage case.   The purpose of the fiberscope case is to protect the unit while not in use form damage, heat, cold temperatures and sunlight.   Optional fiberscope heavy duty storage cases and fiberscope shipping cases are available.

Ask about our fiberscope repair exchange program to help eliminate your fiberscope inspection downtime.
