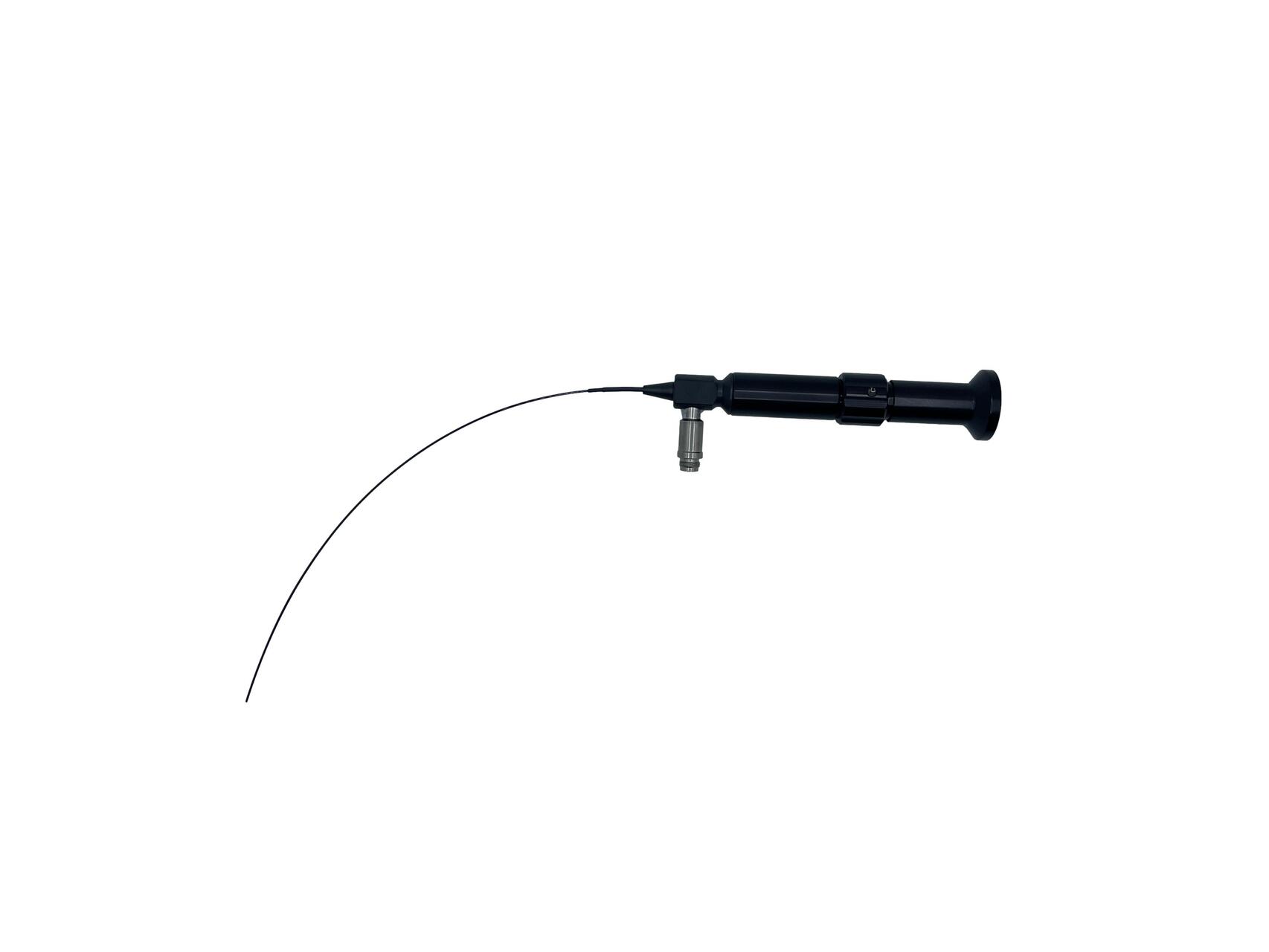

Micro-Fiberscope .5mm x 500mm
Kit price- $3585.00
Flexible fiberscopes are great for one-handed operations so that your other hand can do the work. They come in sizes ranging from 0.5mm to 10mm. They are usually rugged and water and oil resistant. They work great for automotive, aircraft, marine, locksmith, plumbing, and machine or casting inspections.
Distal housing length: 5mm
Minimum Bend radius: 15mm
Direction Of View: 0 degree Fixed – not adjustable
Field of View: 70 degrees
Depth Of View: 5mm – 75mm (.18” – 3”)
Focal distance: 3mm – 25mm
Diameter: 0.5mm (.0197”)
Working length: 500mm – 1000mm
Optical System: High Resolution Quartz Optical fiber
Eye-Piece Type: B-Style 32mm Standard Round
Light Source Connections: ACMI Adaptor, Wolf Adaptor
Waterproof Level: Completely Water proof
Operating Temp.: 10C-80C
Condition: New – unless otherwise mentioned
Warranty: 1 Year

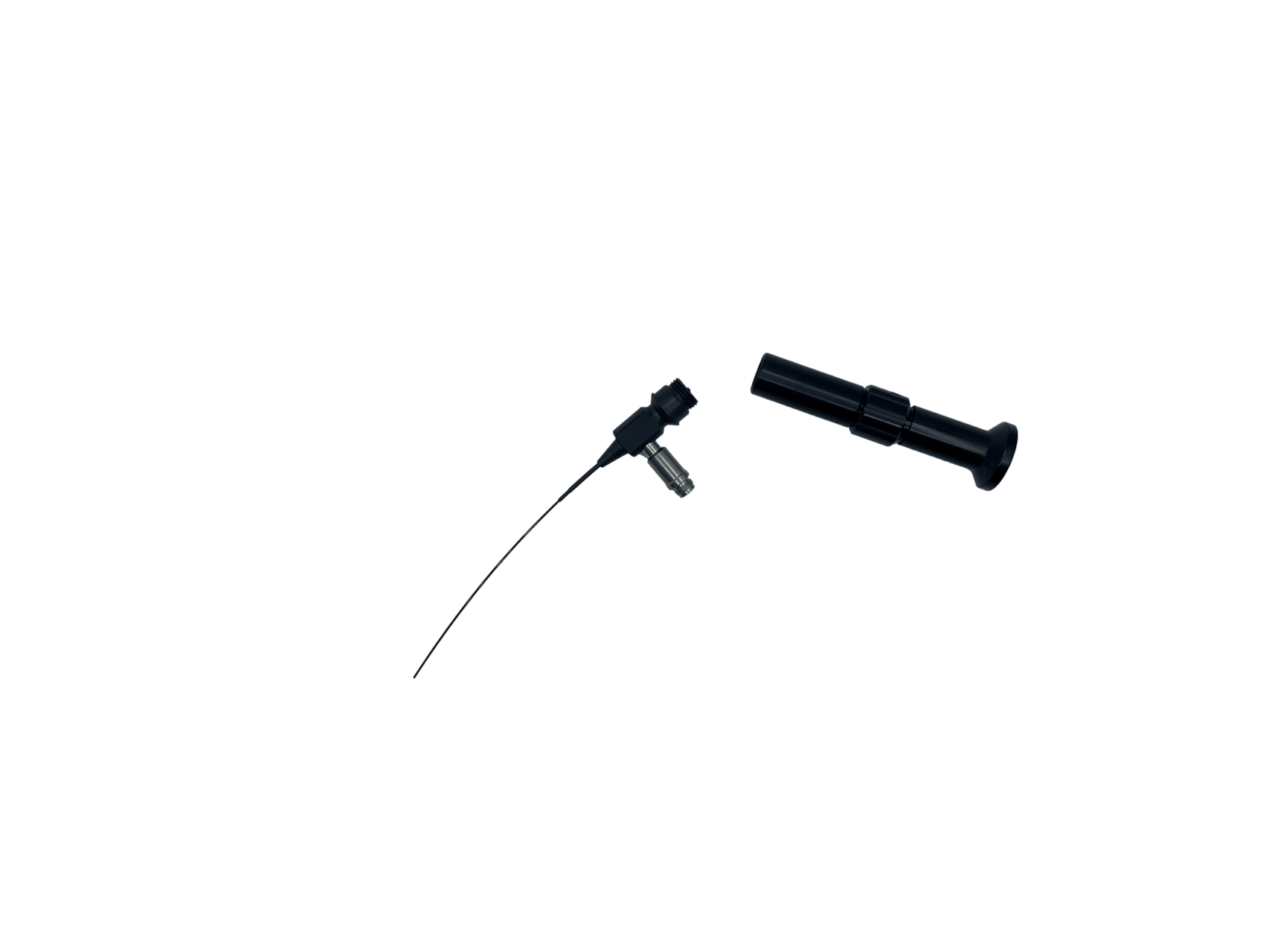

Now Standard with adjustable focus eyepiece – capable of taking off eyepiece and connecting directly to C-Mount Camera (no need for coupler)
Fixed NTE Repair/Exchange price: $1,995.00
MFS-.5-500 Kit Includes
Fiber Optic Light Guide
150 Watt Halogen Light source or Portable Light Source
This flexible fiber scopes offer high resolution optics, with stainless steel braided insertion probes, which are tough and flexible. The 90 degree two-way tip articulation allows inspections in tight areas. The probes are protected by a stainless steel braided sheath which are water, oil, and gasoline resistant. Ideal for insertion into multiple-bend pipes such as aviation engine guide tubes. The fiberscope insertion tube flexibility changes continuously.
The universal focusing eyepiece easily connects to c-mount video cameras through a simple coupler, with a variable focus.
The fiberscope light guide is approximately 1 meter long (can be customized for longer length) to allow ample room to work with from the light source. The standard receiver on the light guide is ACMI and there are various adapters available to support your specific light source. The fiberscope light guide can be used with halogen, metal halide or LED light sources. Please contact us if you have a specific UV application.
The fiberscope is packaged in a custom fitted standard duty storage case. The purpose of the fiberscope case is to protect the unit while not in use form damage, heat, cold temperatures and sunlight. Optional fiberscope heavy duty storage cases and fiberscope shipping cases are available.
Ask about our fiberscope repair exchange program to help eliminate your fiberscope inspection downtime.
