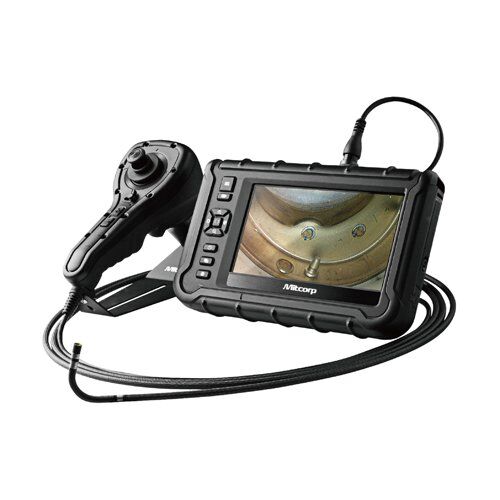

USA2000J-4-1500DV – Joystick Articulation – 4mm Dual-View Videoscope – up to 3m Length

SpecificationsProduct DetailsDownloadsVideos
USA2000J-4-1500DV - 1.5m Length
  • 7″ Touchscreen Color Monitor
  • 3.9mm Diameter
  • 1.5 meter tungsten working length

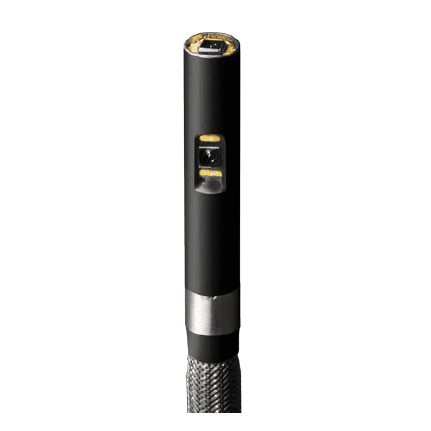

  • Dual View HD Camera Lens (Forward and 90° to the side)
  • Joystick Articulation
  • Picture/Video/Audio Recording
  • Adjustable LED Lighting
  • Freeze Function
  • Light Boost Function
  • Negative Function
  • WiFi Enabled
  • Text Function
  • Advanced File Management Function
  • Heavy Duty Rolling Case
USA2000J-4-3000DV - 3m Length
  • 7″ Touchscreen Color Monitor
  • 3.9mm Diameter
  • 3 meter tungsten working length
  • Dual View HD Camera Lens (Forward and 90° to the side)
  • Joystick Articulation
  • Picture/Video/Audio Recording
  • Adjustable LED Lighting
  • Freeze Function
  • Light Boost Function
  • Negative Function
  • WiFi Enabled
  • Text Function
  • Advanced File Management Function
  • Heavy Duty Rolling Case
Expanded Specifications

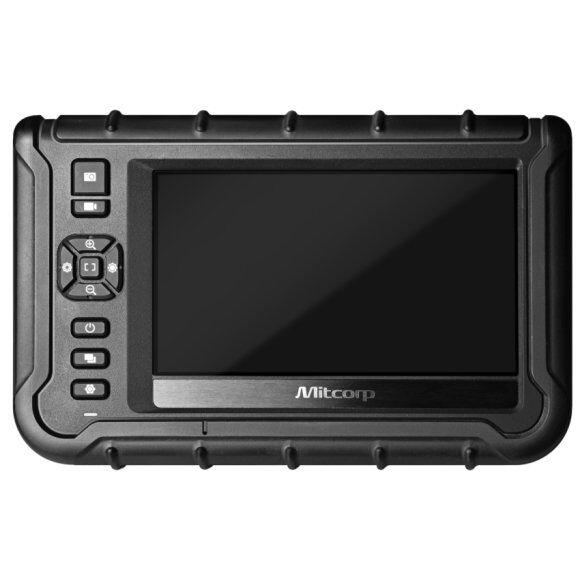

Display: 7″ LCD, Resolution 1024×600

Power Supply:

  • AC Adapter: 100V~240V, 12V 2.5A, 50-60Hz
  • Battery: Rechargeable Li Battery 3.6V 900mAH; approximate operation time: 5 hours; charging time: 4 hours

Video Output:

  • HDMI: TYPE D; HDMI 1.4 transmitter with 3D format and CEC support
  • USB: USB TYPE C, supporting USB full-speed and high-speed data transmission
  • Wi-Fi: IEEE802.11B/G/N

Operating Temperature:

  • With battery power: 0~40ºC
  • With AC Adapter power: 0~35ºC

Drop Resistance: 1m

Relative Humidity: Max 95% non-condensing

Dust Proof/Water Proof: IP57

Insert Tubes Interchangeability: 6.0mm HD series; 3.9mm series

Articulation Probe Specifications

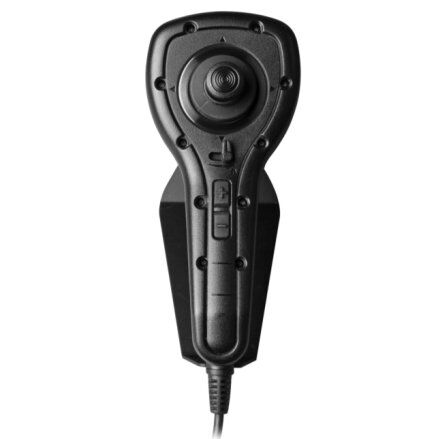

Joystick Console Dimensions (WxDxH): 139.4 x 193 x 84.2mm (w/o SR and insert tubes)

Net Weight: 2m: 700g / 3m: 866g (approximately)

Joystick Console Buttons: Brightness+; Brightness -; Snapshot/Record

Lock and Move: Lock/unlock switch on console

Probe Head Diameter: 4.0mm

Probe Length: 1.5m or 3m

Probe Head Material: Stainless steel

Probe Material: Tungsten braid

Probe Head Length: 21.6mm

Direction of View: Front view

Field of View (FOV): 120º

Depth of Field (DOF): 5mm~100mm

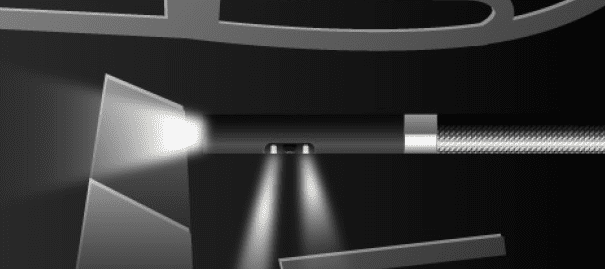

Illumination: Front/Side LEDs

Articulation Angle (up/down/left/right): ≥ 120º

Operating Temperature:

  • In air: -10~100ºC
  • In water: 10~30ºC

Dust Proof/Water Proof

  • Joystick console: IP54
  • Insert Tube: under water 1m for 30 minutes

Relative Humidity: Max 95% non-condensing

Liquid Resistance: Operable when exposed to machine oil, light oil or 5% saline solution

Software Features

Image Features: Digital zoon 3X, 10 steps brightness control

Sharpness Control: Clarity On/Off

Annotation: 10 text annotation (24 characters)

Timestamp/Watermark: for snapshot/video recording (on/off)

Image Management: User define pic / video folder available

On-Screen Display Functions: Light boost, light off, mirror, compare, wireless, particle free, dual view, light direction, negative, auto white balance

White Balance: Manual adjustment (default, warm, cold, custom)

Recording Management Specifications

Storage Media: SDHC, up to 32G

Overlay: YY/MM/DD h:m, battery capacity

Thumbnail Image Display: 9 grids album mode

Still Image:

  • Resolution: 1600×1600
  • Recording Format: .jpg

Video:

  • Resolution: 1600×1600
  • Recording Format: .mov / H.264
  • Audio Input: Built-in microphone (on/off)

Frame Rate: 30FPS

Accessory Specifications

HDMI Cable (AV-out): 1.8m, HDMI 1.4a, D TYPE

USB Cable (data transfer): 1m, TYPE C to standard TYPE A

USB Charging Cable: 1m, USB-DC jack (for power bank)

SD Card: 16G

DC Power Adapter: 100V~240V, 12V 2.5A 50~60 Hz

Interchangeable Side View Tip: 6.0mm

Shoulder Strap: Polyester

Hand Strap: Polyester

Sun Visor: Steel/Plastic

Ground Wire: 3m with DC jack / PC in / clamp

Insulation Cap: Ø20mm, 90mm rubber

Rigid Sleeve:

  • Grip Material: Rubber/aluminum/plastic
  • Tube Material: Stainless steel
  • OD: 6mm / ID: 5mm protection ring; OD 8mm extension joint ring; OD 10mm

Trolley Case: HDPE EVA with storage reel
