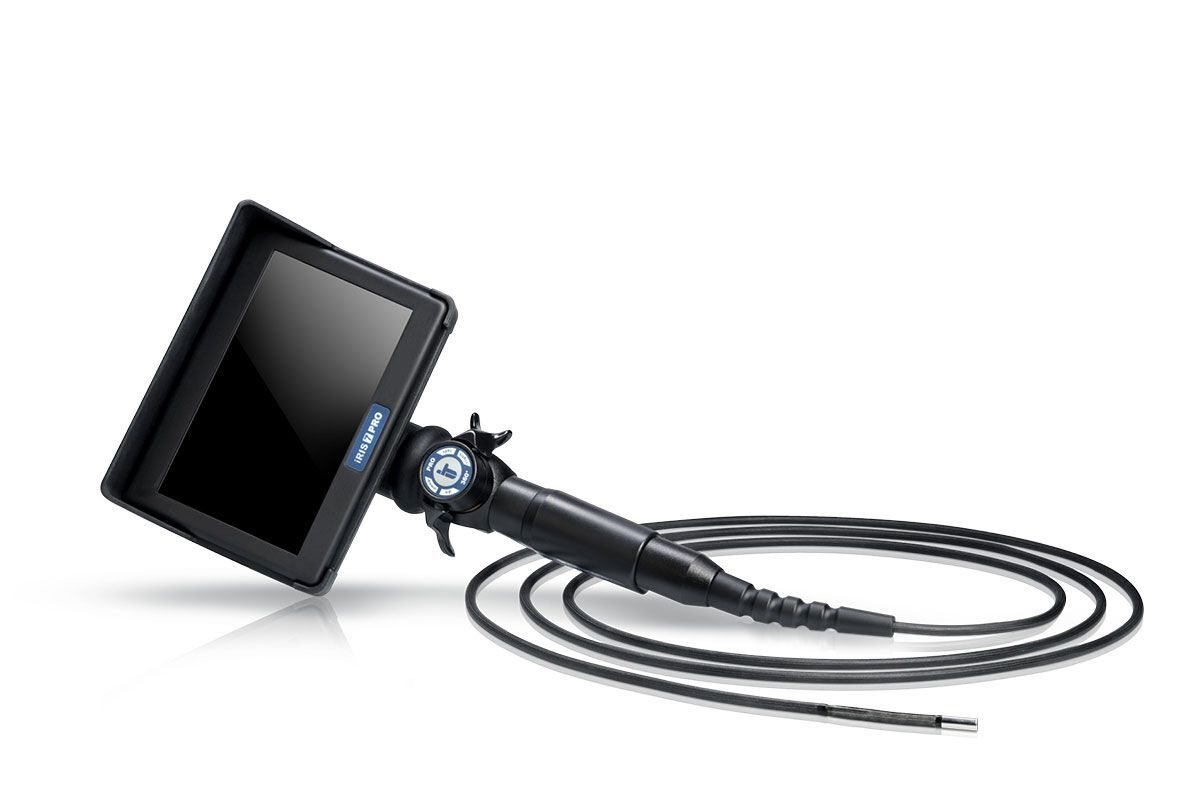

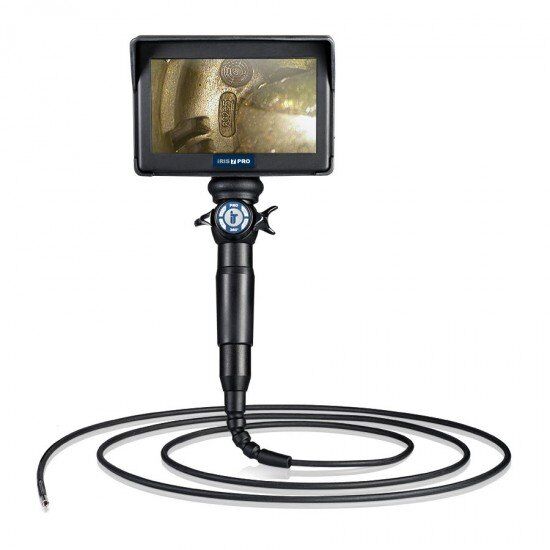

iRis – 7 Pro 6mm Videoscope – 4-Way Articulation – up to 7.5m Length

Performing visual inspections in hard to see areas arise in many different industries however, the inspection must be completed.  With minimal efforts the Iris DVR Pro 7 videoscope system can make even the most challenging borescope inspections painless.  This professional borescope offers responsive 4-way articulating with up to 180 degrees of angulation.  The 7 inch high resolution screen with touch display makes documentation and viewing of the inspection area clear and crisp.   The rechargeable battery pack for the portable borescope assures up to 2 hours of operating time and can be easily exchanged in seconds.   The 4mm diameter borescope provides the following interchangeable objective borescope lenses:

Probe               DOV   FOV    DOF               CODE

6.0mm              0°       60°     5mm-∞          BLACK
6.0mm              0°       60°      8mm-∞         YELLOW-B
6.0mm              0°       90°      5mm-∞         RED
6.0mm              0°       120°   3mm-∞          GREEN
6.0mm**          90°     60°     5-15mm        SVTA-CF
6.0mm**          90°      60°    15-50mm      SVTA-FF



The 6mm portable videoscope Iris is available in various borescope probe lengths:

Borescope Part Number                      Borescope Diameter   Borescope Length

iRis 7 46-15 Art. 4-way                      Dia. 6mm                          1.5m (4.9 ft)

iRis 7 46-20 Art. 4-way                      Dia. 6mm                           2.0m (6.6 ft)

iRis 7 46-30 Art. 4-way                      Dia. 6mm                          3.0m (9.8 ft)

iRis 7 46-40 Art. 4-way                      Dia. 6mm                           4.0m  (13.1 ft)

  • 4 Ways Articulation
  • 7″ Monitor (1024 x 600px)
  • Probe with integrated light source
  • Interchangeable Forward and Sideview Tips
  • Internal 16GB Storage
  • Probe diameter 6mm (0.23622 inches)
  • Probe comes in 7 lengths (1.5m, 2m, 3m, 4m, 5m, 6m, 7.5m)
  • Text Annotation
  • Waterproof up to 14.7 psi
  • Tip operating Temp -13F – 176F
