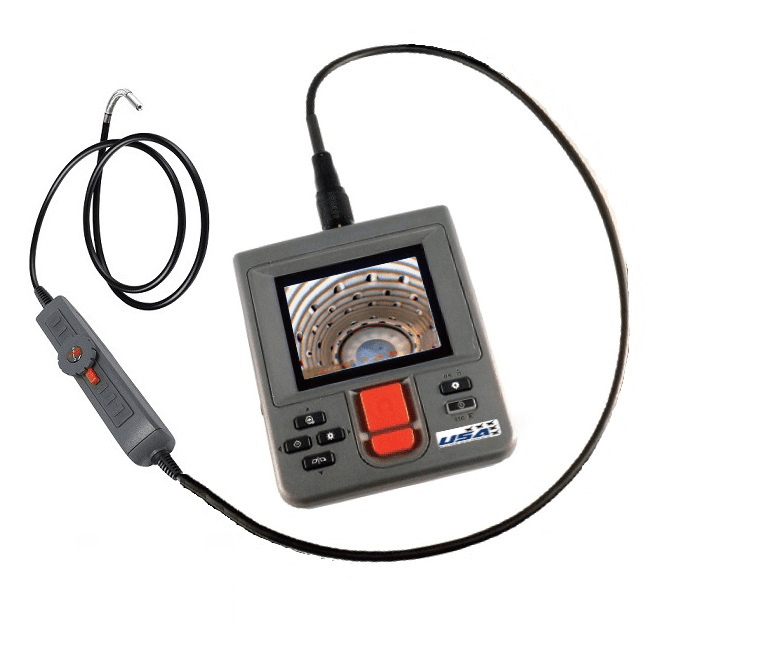

MCVS-2-4.5-1500 – 2-Way Articulation – 4.5mm Videoscope – 1.5m Length


Price: $1,495



• 4.5MM diameter – 1.5 Meter working length – 2 Way Articulation

• 3.5″ TFT LCD

3.5″ Extra-wide view angle and clear TFT, protected by oil and scratch resistant tempered glass.

• LED brightness adjustment

Simply push +/- button to increase/decrease brightness

• Snap shot and video recording

Records VGA resolution (640×480 pixel) video clips and still images with instant playback review

• AV out

Allows for TV monitor and computer interfaces

• Zoom in and Mirror

larger images (3X, 5X) and horizontal/vertical mirror for code identification

• IP 55 dust and water protection

Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact

Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.

• Slim and Compact

weighed only 300g (w/o batteries)

• Interchangeable Insert Tube options

Front/Side Camera probe : 3.9mm, 4.5mm, 5.5mm, 8.5mm

Dual Camera Probe : 4.9mm

Two way Articulation : 5.5mm, 6.0mm


Main System:

System Dimension 140mm x 116mm x 42mm

System Weight 300g (w/o battery)

Display 3.5” TFT LCD QVGA

Power 4 x AA 1.5V batteries (included)

Battery life 4 hours(typical)

Storage SD card(SDHC), up to 32G

Video Out NTSC & PAL / AV out

Video / Photo file format .avi / .jpg

Video / Photo resolution 640 x 480

Operating Temperature 0ºC~60 ºC

Storage Temperature 0ºC~60 ºC

Additional information

Weight10 lbs
