Wohler – VIS 360 – 14139- 1.5″ Pipe Camera – 100′ Length

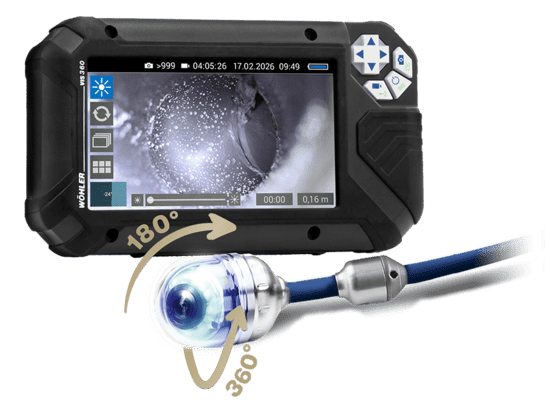

Monitor

• Dimensions of housing: 9.7 x 5.6 x 2.1 inches
• Weight: 1.6lbs
• Screen: 7 inches

Miniature camera head, color Ø 1.5″

• Type – 1/4″ COLOR CMOS
• Resolution – 720 x 576 px (PAL) 720 x 480 px (NTSC)
• Lens – f = 0.09″, F = 2.5
• Light source – 10 white LEDs
• Degree of protection – Waterproof according to IP 67 (30 min. up to 3 ft deep)
• Dimensions – Ø 1.5″ x 2.4″
• Operation temperature – 32 – 104 °F, RH 95% max
• Storage temperature – – 4° – 122 °F RH 95% max.
• Transmitter frequency – 512 Hz / 8.9 kHz / 9.2 kHz

Push rod

• Length – 100 ft.

Distance measurement

• Max. deviation 5% of measured value

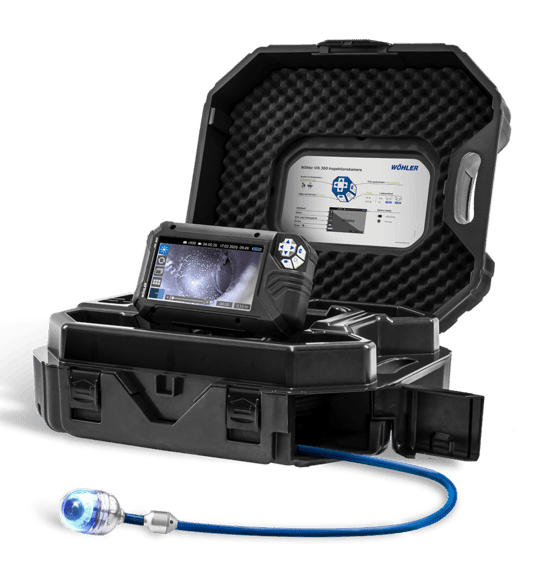

Plastic case

• Dimensions – 7.1 x 18.1 x 19.7 inches (LxWxH)
• Weight – 20.5 lbs

Memory

• Recording – Internal memory or USB stick with max. 32 GB
