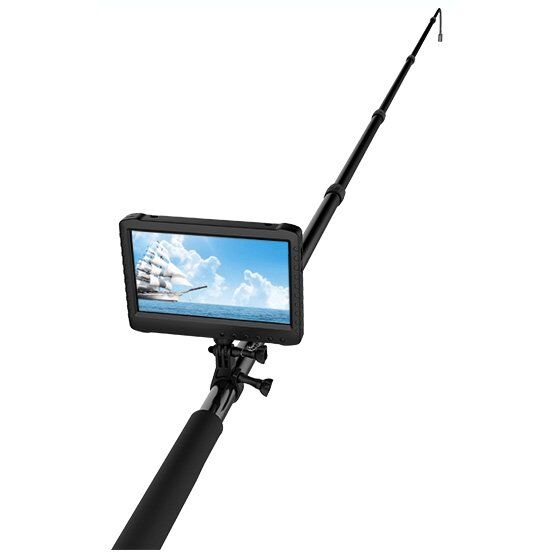

USA-TPC-20-5 – Telescopic Pole Camera System

Pole Camera System

PN: USA-TPC-20-5

Features:

  • 5MP HD Underwater Hold Digital Camera
  • 19.5mm Diameter
  • 5m Telescopic Pole
  • 7″ Digital Monitor
  • 64MB Micro SD Card
  • 8 Hour HD Photo and Video Recording Capability
  • HDMI High Definition Video Output



Specifications:

 Waterproof telescopic camera with 5m pole
Camera Dimension 19.5 x 28.5mm
Optical Element 1/3 CMOS Sensor
Optical Total Pixels 5.0MP:3200(H)×1800(V)
Sensitivity 0.2Lux/F1.2  90°
Light source 6pcs LED/ IR lamps controlled on DVR
HD Video Output Interface FPD-LinkⅢ
Data cable Diameter:5mm   Length:6m

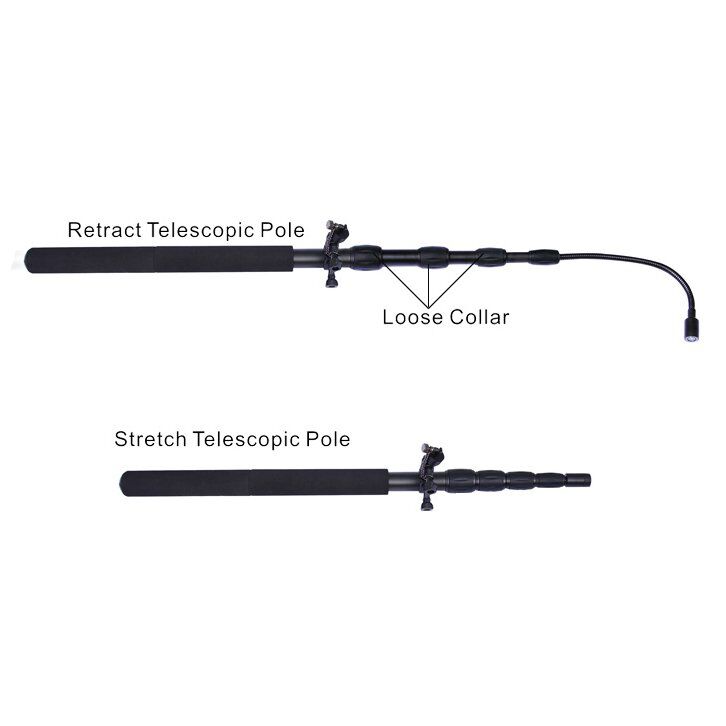

Pole style telescopic pole
Pole Length Fold:1.13m, Unfold:4.86m
Pole Weight 5m  0.9kg
7 Inch Monitor with sunshade
HD Video Output HDMI:1920* 1080;1280*720
Video Storage Pixels(16:9) HDMI:1920* 1080;1280*720
Video Compression Format H.264
Video compress AVI
HD Digital Video Input Interface FPD-LinkⅢ
Photo Format JPG  5.0MP :3200(H)×1800(V)
Storage External SD card TF card  1GB-64GB(Optional)
Operating system Windows & Mac OS
Port  Standart AV-OUT, USB2.0
Language Multiple
Current&Voltage 700mA Video mode;600mA Monitor mode / DC 12V  2A
Built-in battery Rechargeable Li-battery 5500mAh
Standby time ≥8 hours
DVR Size&Weight 177mm x120mm x 20mm /350g

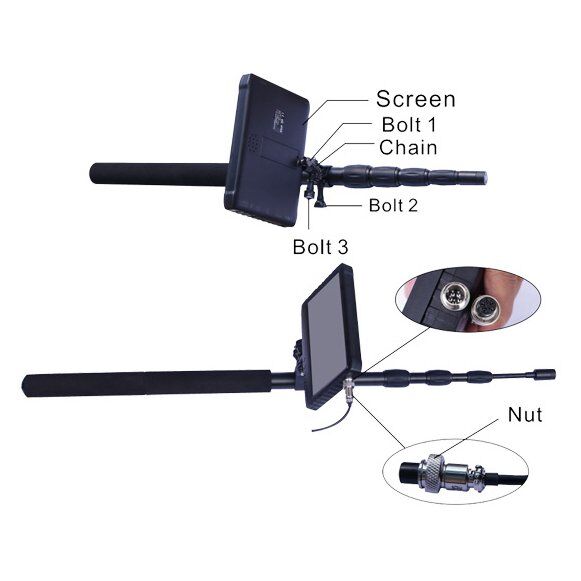

Package Contents 1*7 inch Digital DVR with sunshade;

1* usb cable
1*AC adapter
1*HDMI Data Cable
1* 5m telescopic pole with camera
1* Aluminium alloy Case
