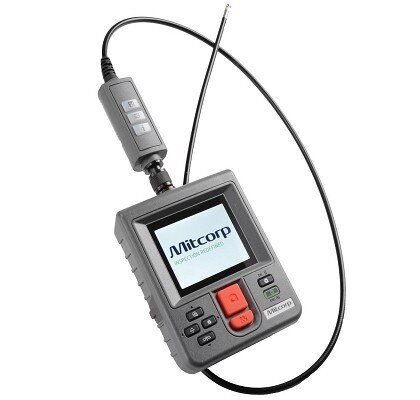

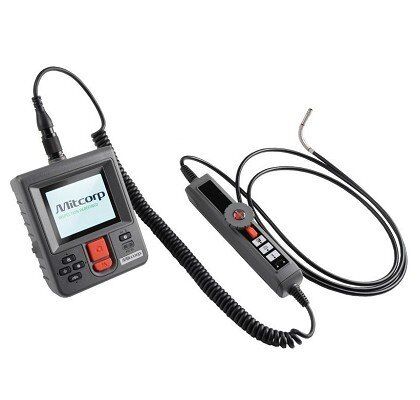

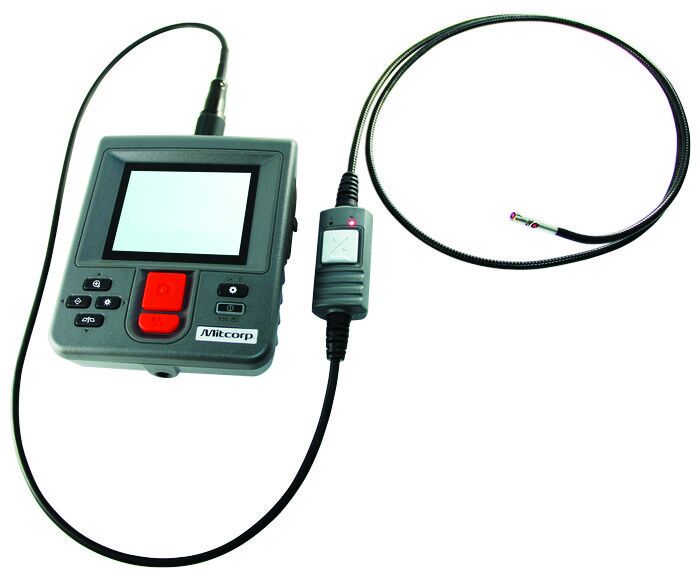

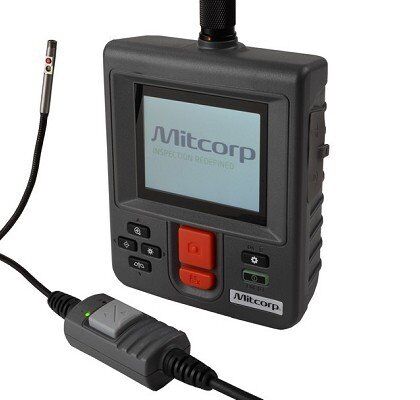

USAF300-4.9 – No Articulation – 4.9mm Dual View (Front/Side Switchable) Videoscope – 1m Length



4.9mm Dual View (Front/Side Switchable) Camera Videoscope – Non Articulating

1m Length

Compact design that makes F300 operable in tough inspections.



  • 3.5″ TFT LCD

3.5″ Extra-wide view angle and clear TFT, protected by oil and scratch resistant tempered glass.

  • LED brightness adjustment

Simply push +/- button to increase/decrease brightness

  • Snap shot and video recording

Records VGA resolution (640×480 pixel) video clips and still images with instant playback review

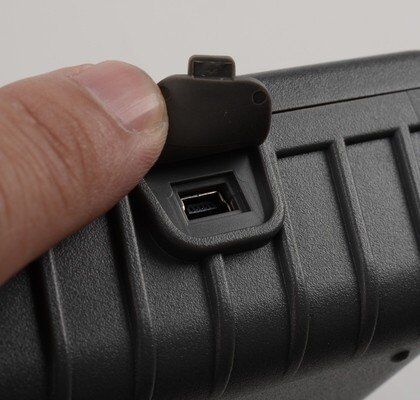

  • AV out

Allows for TV monitor and computer interfaces

  • Zoom in and Mirror

larger images (3X, 5X) and horizontal/vertical mirror for code identification

  • Slim and Compact

weighed only 300g (w/o batteries)

Additional Information

  • System dimension: 140mm x 116mm x 42mm
  • System weight: 300g (w/o battery)
  • Display: 3.5” TFT LCD QVGA

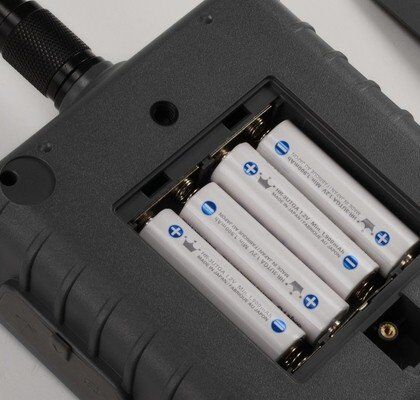

  • Power: 4 x AA 1.5V batteries (included)
  • Battery life: 4 hours (typical)

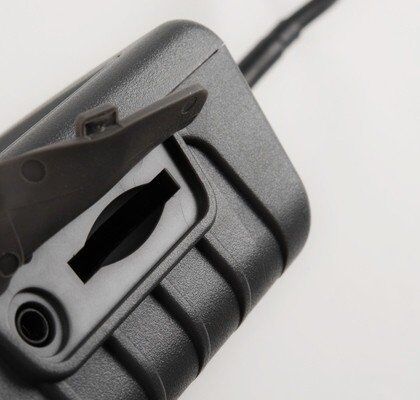

  • Storage: SD card (SDHC), up to 32G
  • Video out: NTSC & PAL / AV out
  • Video/photo file format: .avi / .jpg
  • Video/photo resolution: 640 x 480
  • Operating temperature: 0ºC~60 ºC
  • Storage temperature: 0ºC~60 ºC

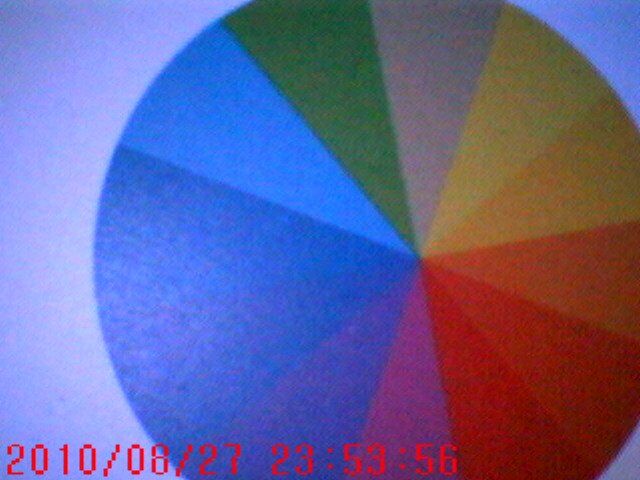

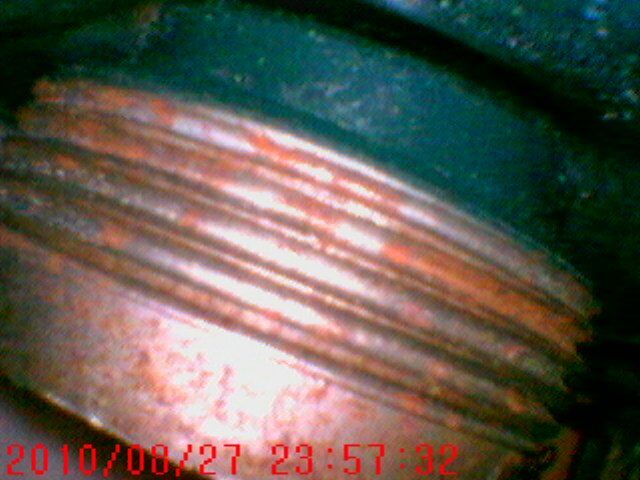

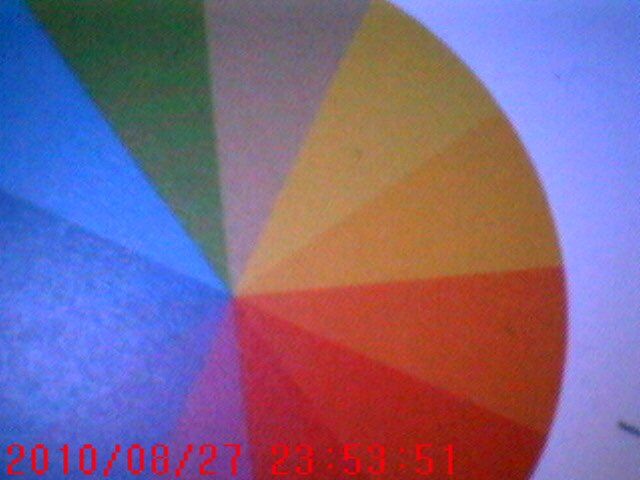

  • Direction of View: Forward/Side View


Other Available Options:

Probe Diameter Options:

– 3.9mm Front/Side Camera Non Articulation

– 5.5mm Hyperion Non Articulation

– 6.0mm Two-Way Articulation

– 8.5mm Front View Camera Non Articulation
