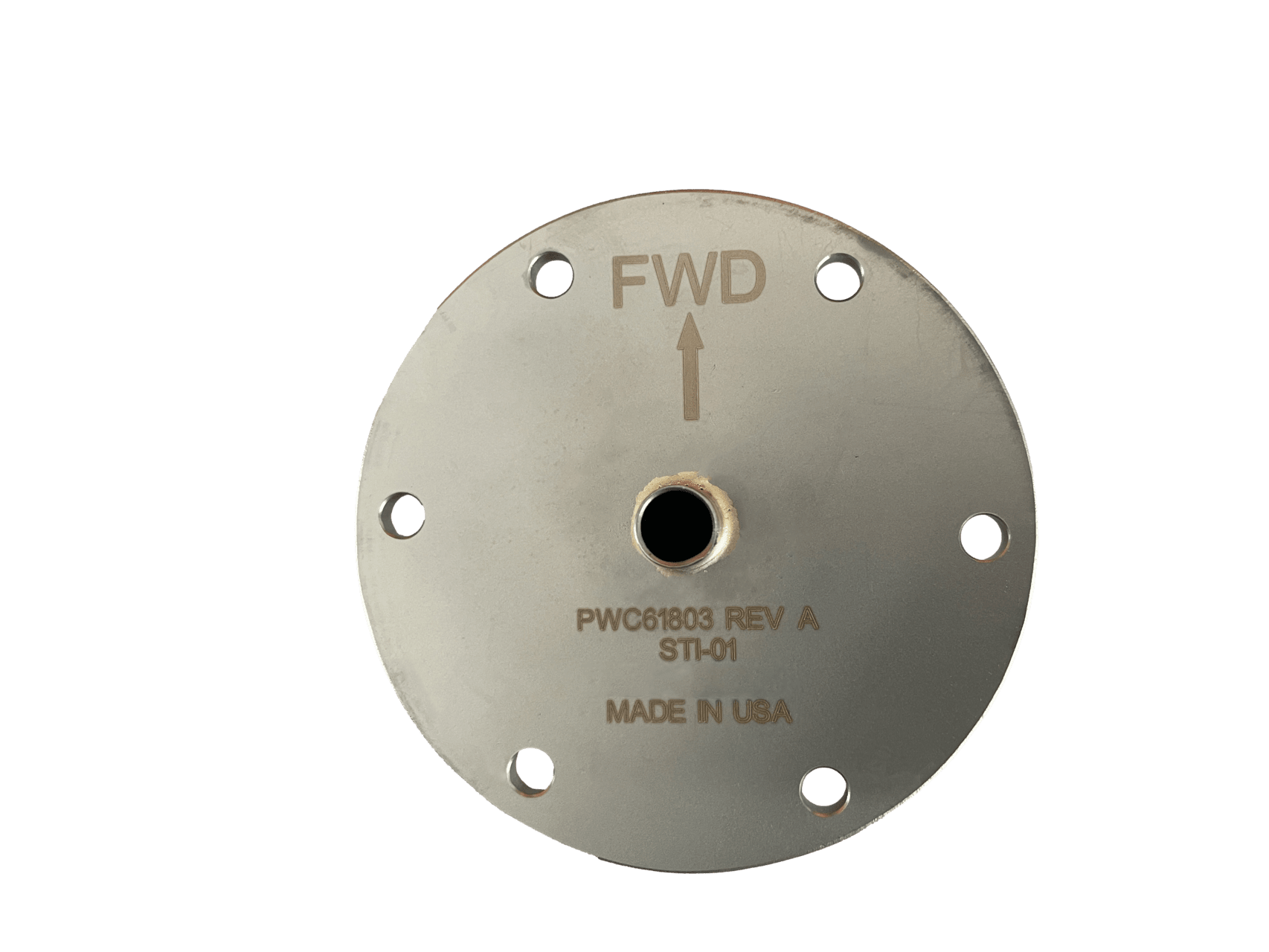

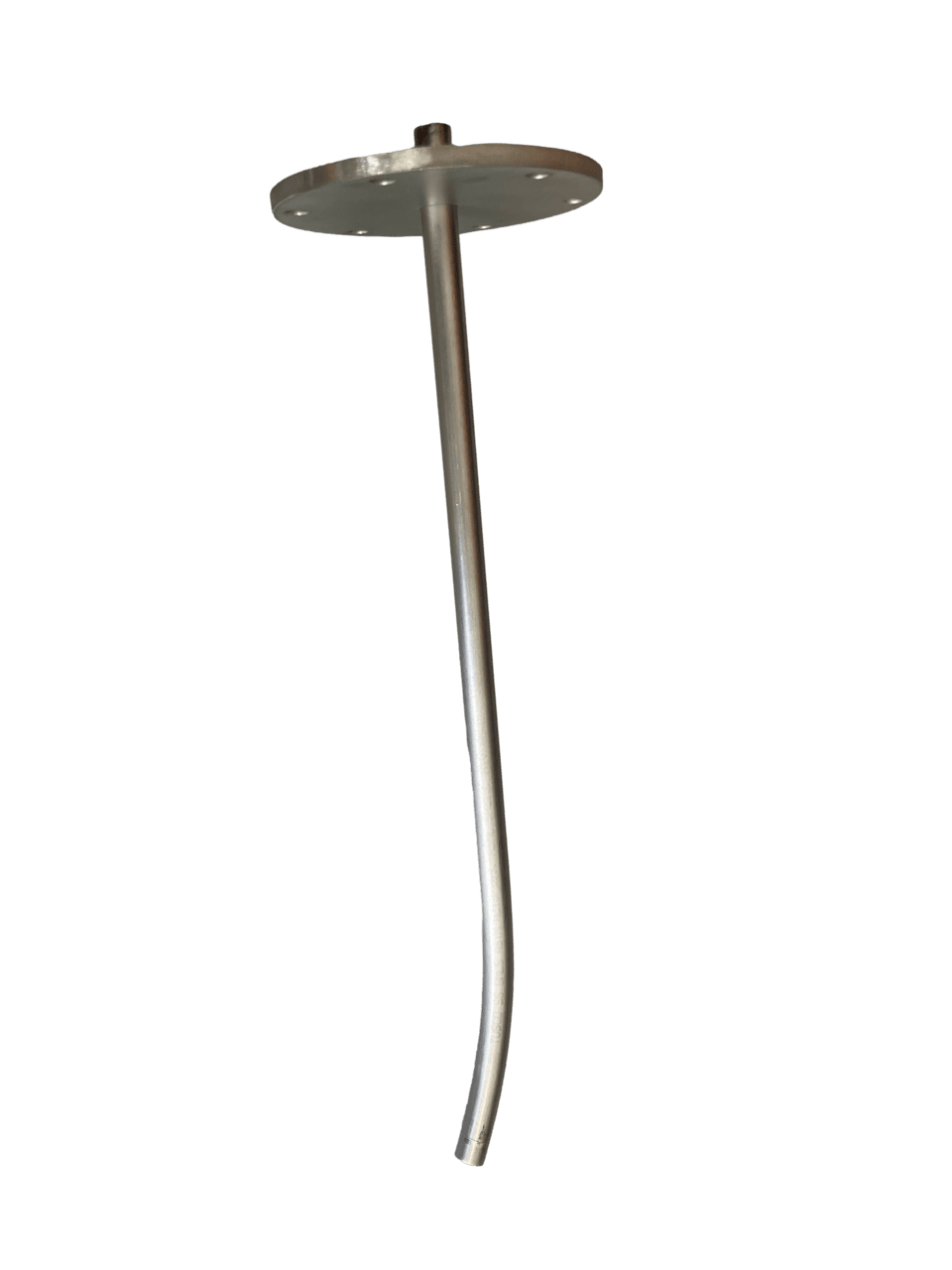

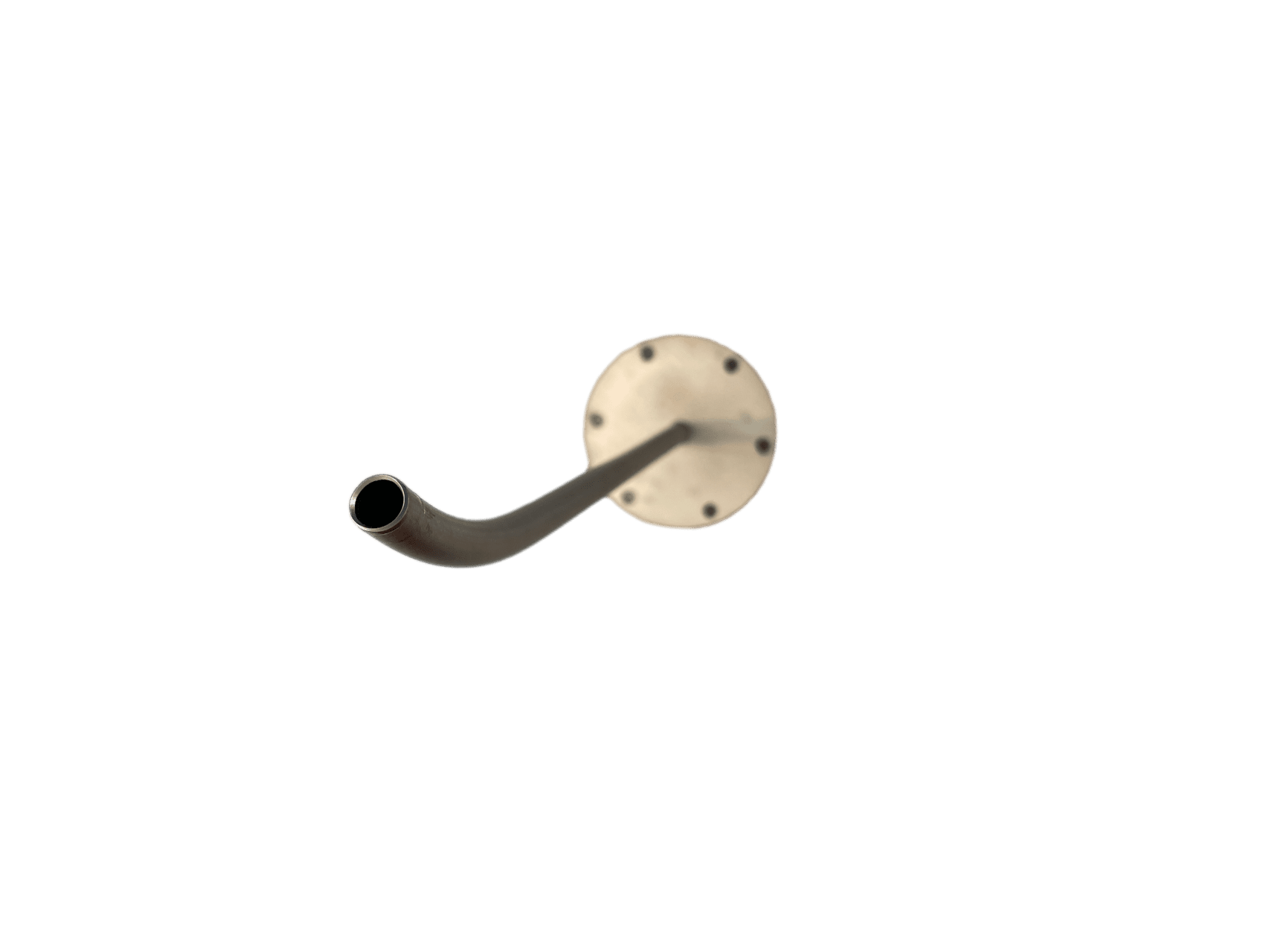

PWC61803 Pratt & Whitney Borescope Guide Tube

The PWC61803 is a guidetube to inspect the compressor rotor for the PW306 engine

The PW306 engine is a turbofan engine manufactured by Pratt & Whitney Canada. It is a member of the PW300 family of engines and is designed for use in mid-size business jets.

Here are some key specifications of the PW306 engine:

  • Thrust: 5,600 to 6,040 pounds (depending on the model)
  • Bypass ratio: 4.2 to 4.4
  • Length: 86.4 inches
  • Diameter: 21.4 inches
  • Dry weight: 1,640 to 1,655 pounds
  • Compressor: Two-spool, axial flow
  • Combustor: Annular
  • Turbine: Axial flow, single-stage high-pressure turbine, and two-stage low-pressure turbine
  • Maximum altitude: 45,000 feet

The PW306 engine is known for its high performance, reliability, and fuel efficiency. It has been used in a number of popular business jets, including the Bombardier Challenger 300 and the Gulfstream G200.

Request A Quote
