minCam360 Pan & Tilt Push Camera

minCam360 Pan & Tilt Push Camera

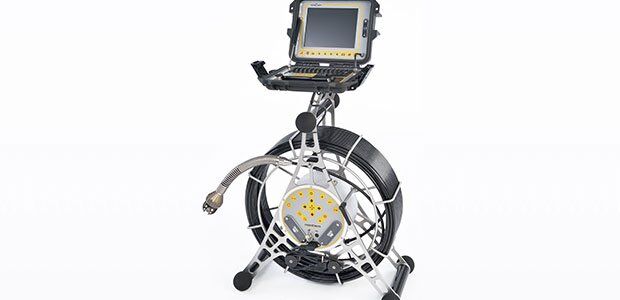

Sewer, water & drain video pipe inspection camera, cable reel and monitor.

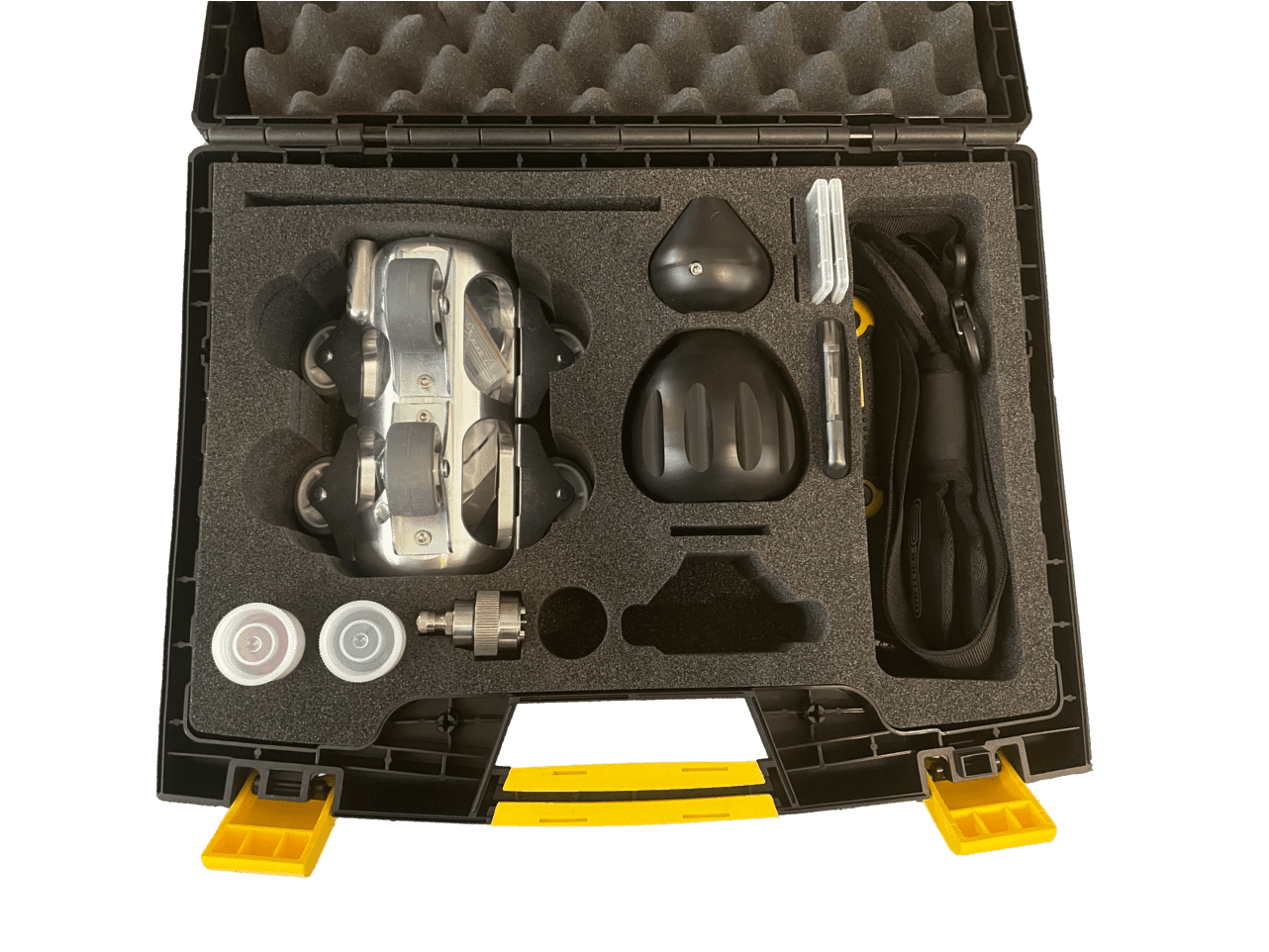

The MC360 pipe camera can push through 4” 90° P-Traps and inspect pipe diameters up to 16” with the optional large roller upgrade. It features 4-step digital zoom as well as innovative self-adjusting "smart" LED lights. Application range is 3" to 16" (with all optional accessories).

minCam360 System Specs
200 ft. (60m) of 9.2mm fiberglass push cable (up to 300 ft.)
Integrated dual-band 512Hz/33kHz sonde. (optional - not included)
Electronic on-screen distance counter.
2 removable Lithium Ion batteries for 4 hours operation.
Power Supply: 100 - 240V AC

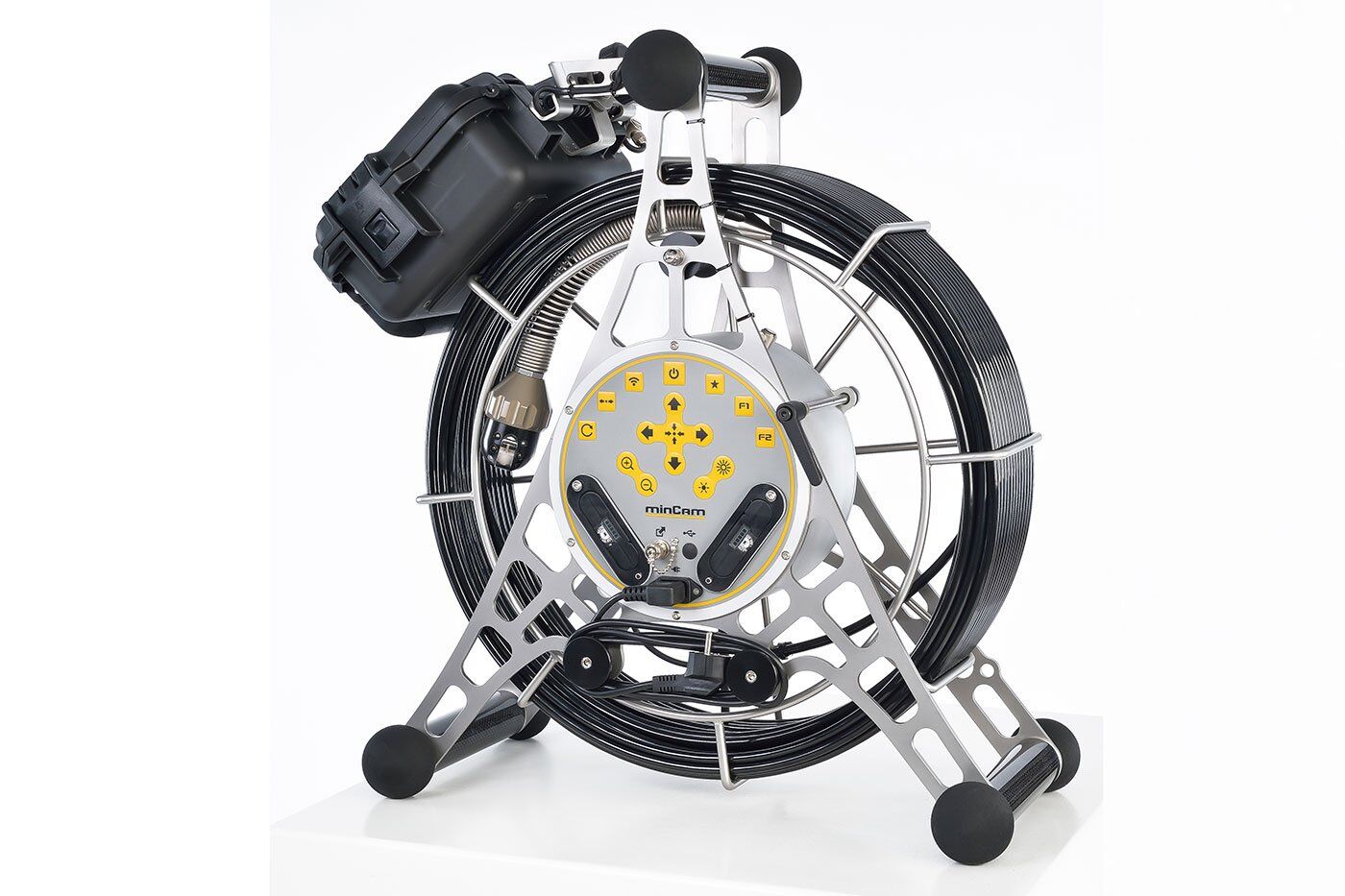

Lightweight stainless steel & carbon reel cage.
Mechanical reel brake.
Control unit: On/off switch, light regulation, sonde frequency control, Preset camera macros, BNC video out.
Wireless remote control with joystick for pan & tilt, 4X zoom control, light regulation, preset camera macros.
Pelican® case with complete accessory kit included.
Weight: 49 lbs.; Dimensions: 23” x 26” x 12” (L x H x W)
Optional: external battery charger; both AC and DC car charger available.

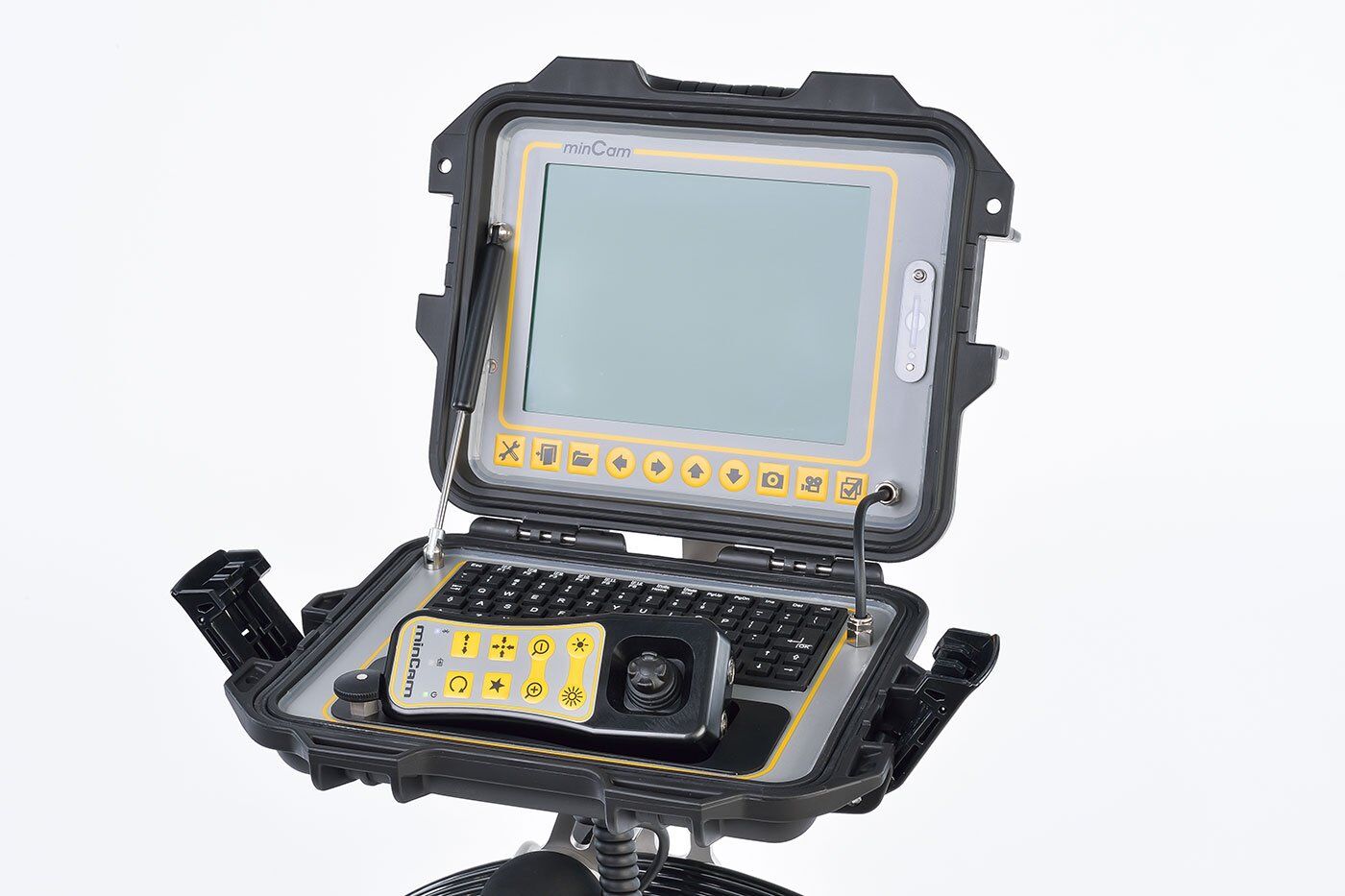

Monitor & Recording
8.4” TFT LCD sunlight readable, records video, audio & photo
Pelican® Storm Case heavy-duty housing
SD card reader, max. 32 GB for approx. 20 hours of video
MPEG-4 Video (.avi, 800x600); Pictures (.bmp 640x480)
Integrated Qwerty keyboard text generator in Pelican case

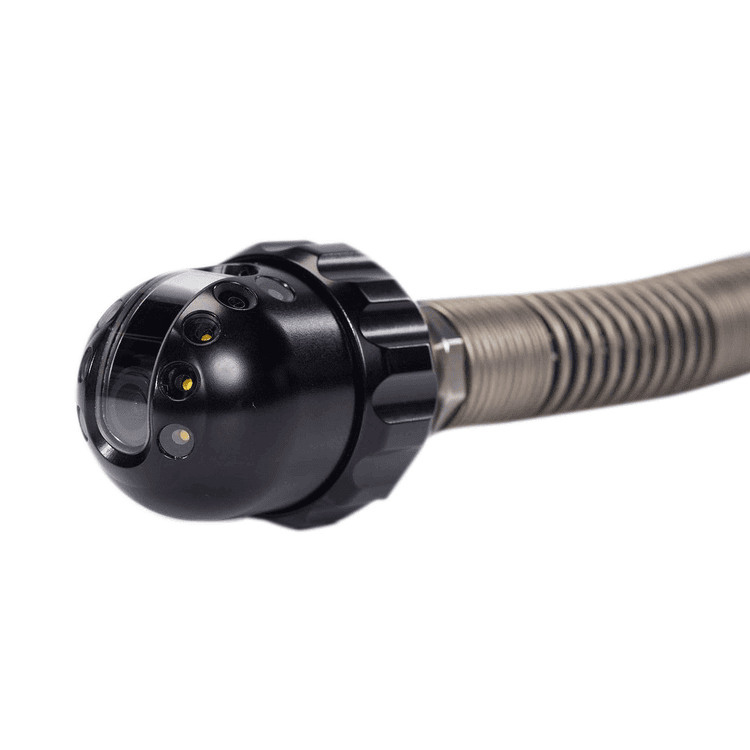

Range: 3" - 16"
Pan & Tilt Infinite 360° pan / tilt range: 150° viewing angle
Video Quality: Light-sensitive color image, 520 TVL
Light Ring: 10 Self-adjusting 'smart' LEDs
Lens: 4mm sapphire glass
Zoom 4-step digital
Focus Automatic mechanical focus
Water Tight: Up to 85 psi
Outer diameter: 1.96" (50 mm)
Cylindrical length: 1.25" (30 mm); 3.2" (80 mm) total length


This inspection device is not certified or designed for use in explosive or hazardous environments.
