1 Inch Manual Push Inspection Videoscope

Manual Push Inspection Videoscope (PIVS3188DN)

$1,008.00 USD (plus shipping)

Product Description:

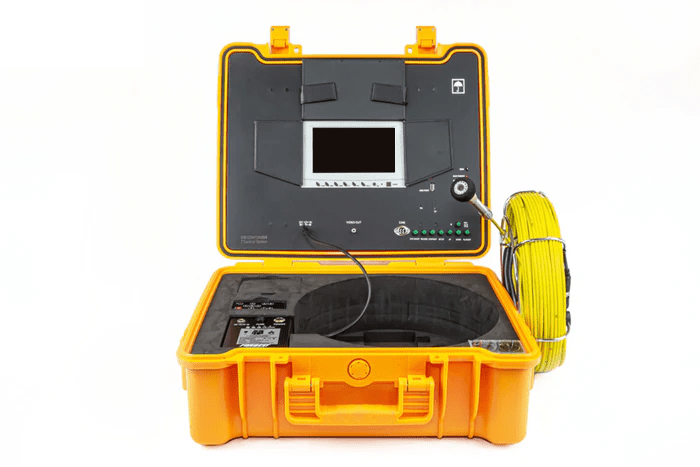

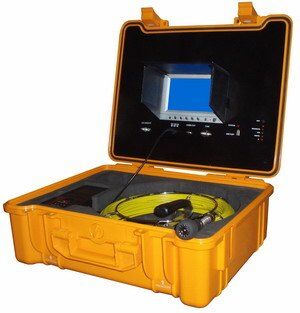

Portable push camera system with a 1 Inch diameter tip and a long 100 foot insertion probe. The video camera head is flexible and is supplied with bright LED lighting. Ideal for pipelines, ducts, drains or sewer inspections.

Features:

7″ TFT lcd color monitor in an ABS Waterproof Case

6 ” CCD waterproof color camera with 8 LED lights

Camera has diameter of 1 inch

Sapphire glass lens cover

Camera field of view: 60°

Cable Length : Standard : 30 meters (40M optional – $1,699 call for availability)

Remote control (for monitor)

Rechargeable Li-ion storage battery

Built-in digital recorder

USB port

Movie format: AVI

View of Depth: 400mm (approx)

1 Bar Rating (14.5038 psi)

1 Manual Push Spec Sheet

This low cost portable inspection device is designed to deliver quality video inspection in a wide range of applications including: sewers, sewer pipes, air ducts/piping, wells, production piping and power plants.
The push camera head contains 12 adjustable LED lights, a flexible spring coiled joint to navigate around corners, and a Sapphire lens to resist scratching. This high resolution pipe inspection camera is designed to capture bright, crisp, color video of the inspection area. An optional 512Hz frequency sonde, located immediately behind the camera head, with the ability to remotely locate it (with the use of the optional locator). The monitor and additional controls are built into a compact, waterproof and lightweight hard plastic case making it easy to transport. The 7” TFT LCD color display presents a live color image with your thumb drive. An adjustable sun hood is included as a sun shield for outdoor inspections.
The PVC coated fiberglass cable is waterproof and available in 30 meter (98.4 foot) and 40 meter (131.2') lengths. The reel conveniently stores the cable inside the case and is easy to remove and return to the storage area.   This system.  In addition, the control station for this sewer camera can support different diameter probes:  6mm, 12mm and 40mm.  This unit is also available as a pipe inspection camera rental.
$1008.00
How many ?

Category Pipe Inspection Systems (Push Camera and Sewer Camera)
